Air Conditioning (Automatic A/C)

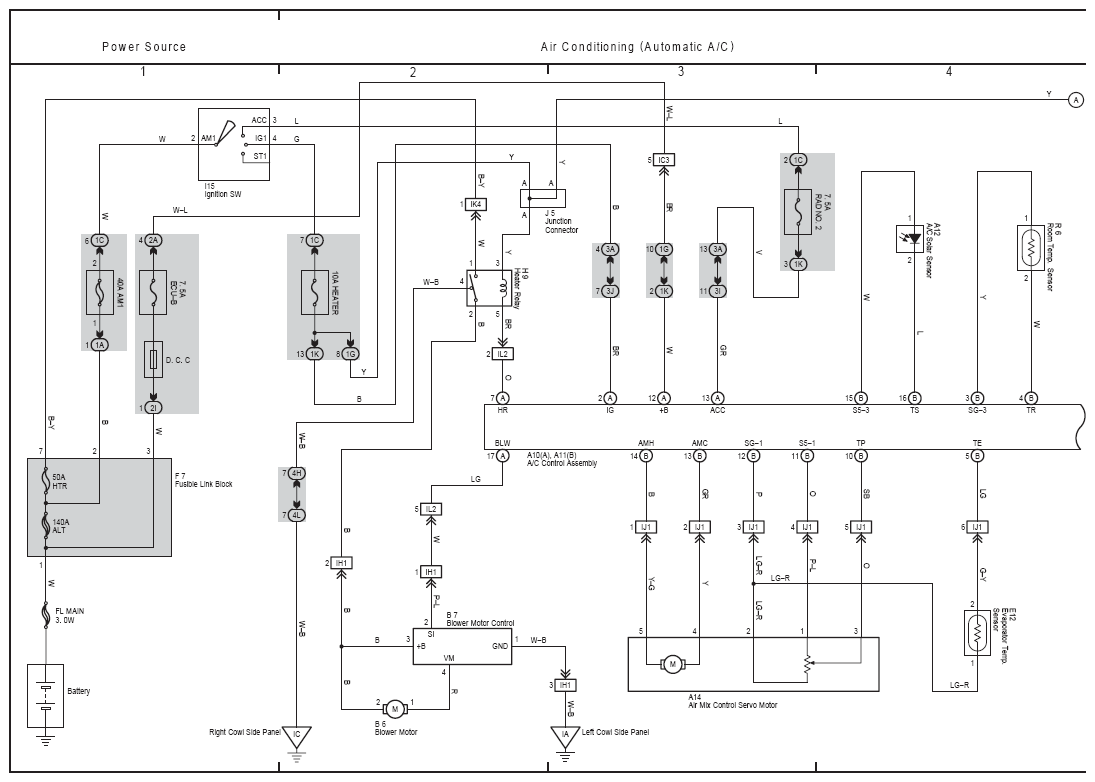

Fig 1: Air Conditioning (Automatic A/C) Electrical Wiring Diagram (1 Of 2)
G08860843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

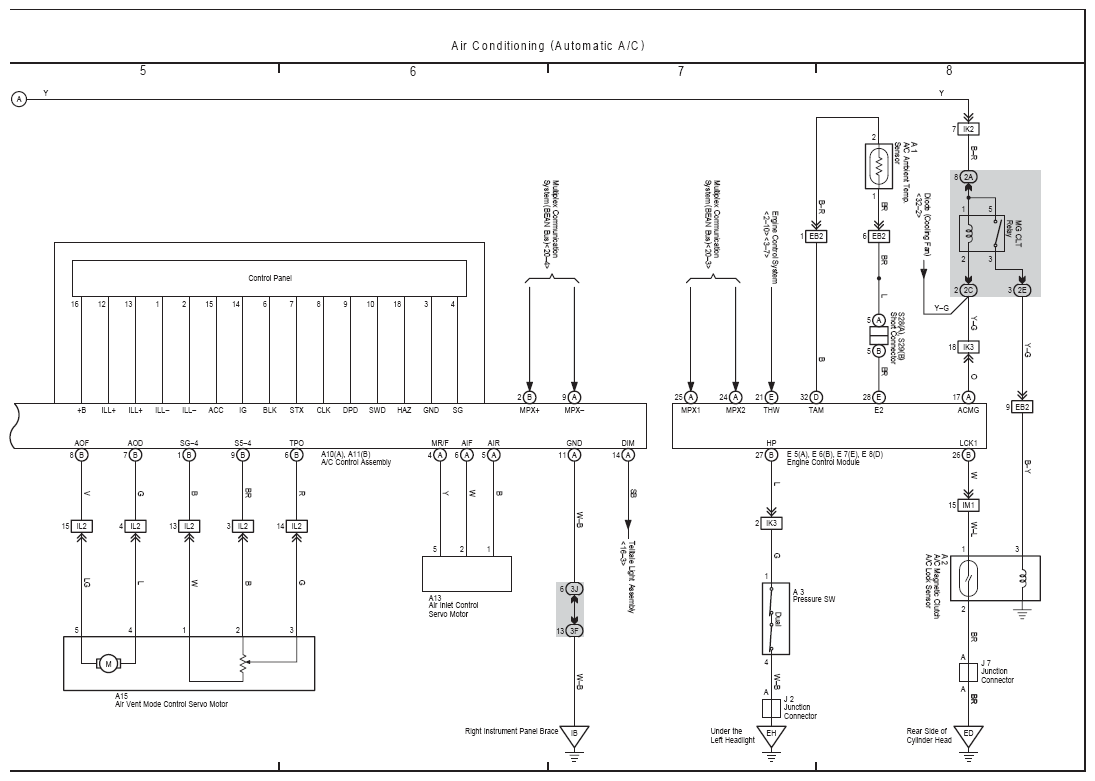

Fig 2: Air Conditioning (Automatic A/C) Electrical Wiring Diagram (2 Of 2)
G08860844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
