ABS, Multiplex Communication System (CAN), Tire Pressure Warning System, TRAC, VSC

Fig 1: ABS, TRAC, VSC And Tire Pressure Warning System Electrical Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: ABS, TRAC, VSC And Tire Pressure Warning System Electrical Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

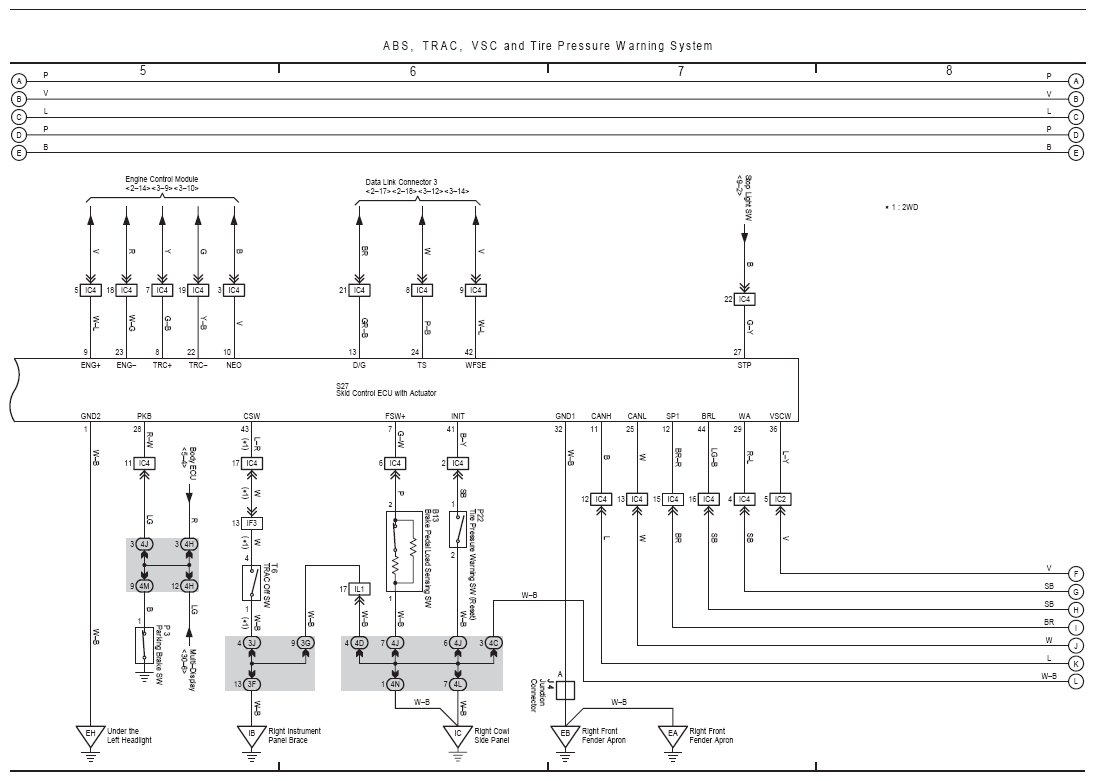

Fig 3: ABS, TRAC, VSC And Tire Pressure Warning System Electrical Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
