REAR DRIVE SHAFT (for 4WD): Components

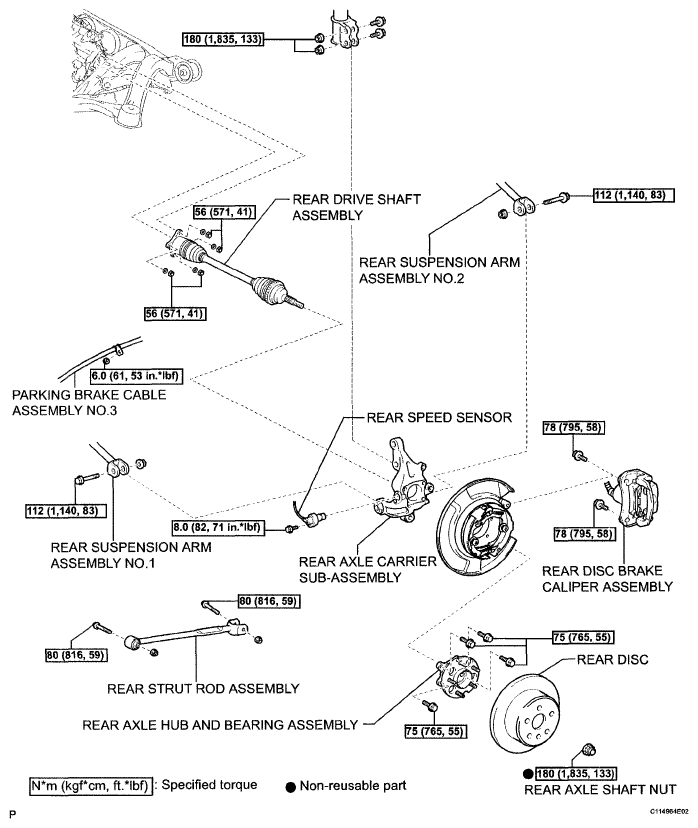

Fig 1: Rear Drive Shaft Replacement Components With Torque Specifications - For 4WD (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

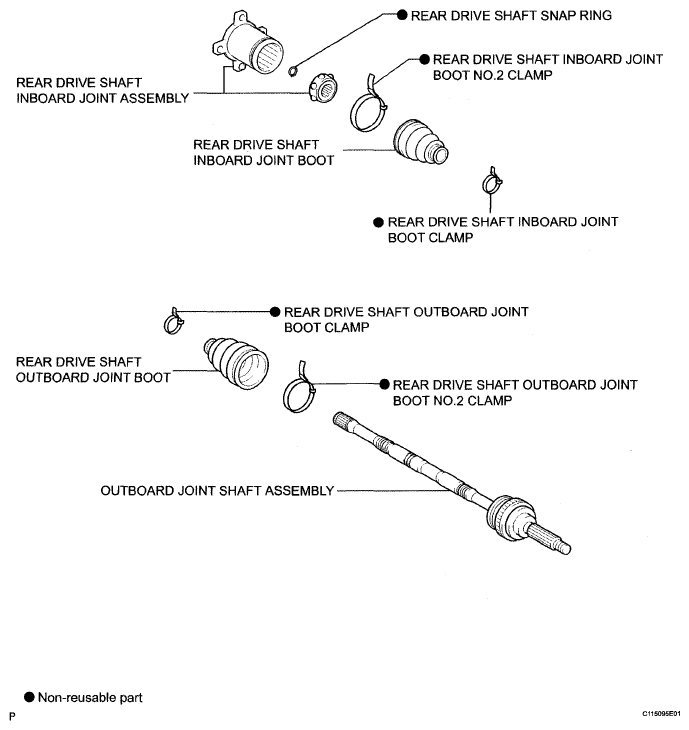

Fig 2: Identifying Rear Drive Shaft Components - For 4WD (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
