Front Drive Shaft: Components

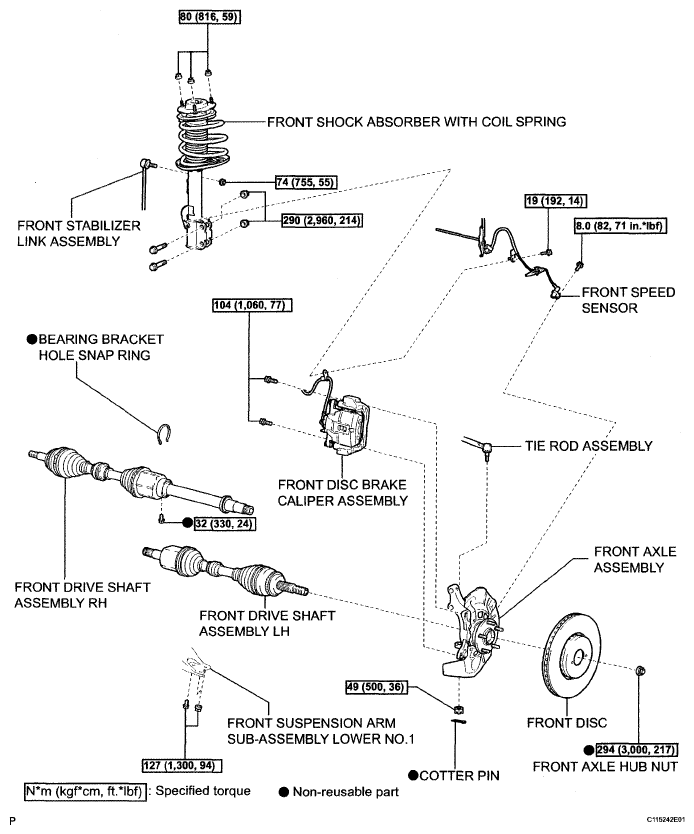

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications (1 Of 3)
G05202335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

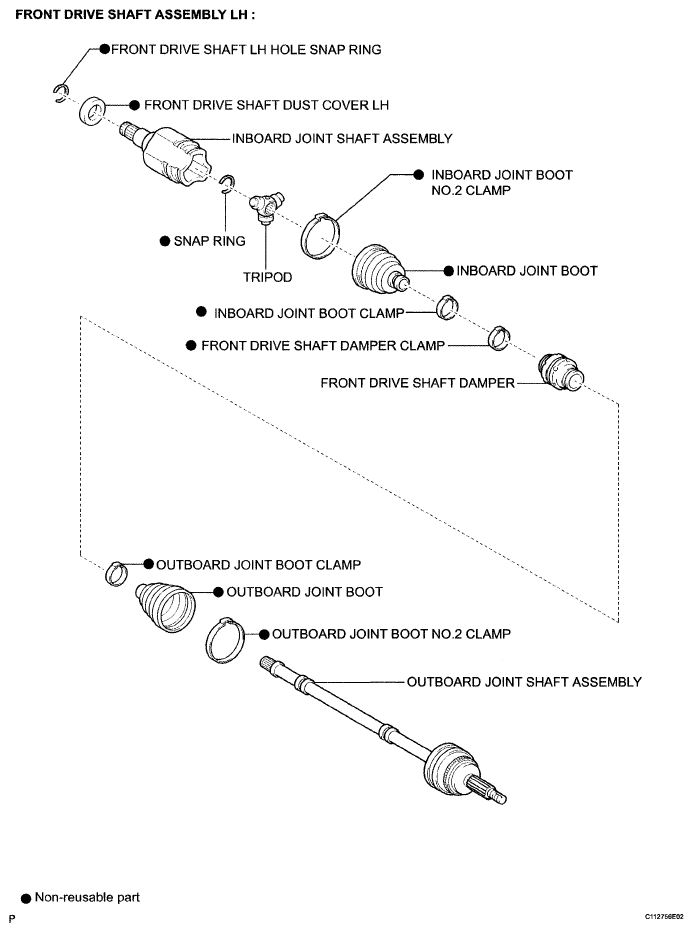

Fig 2: Identifying Front Drive Shaft Components (2 Of 3)
G05202336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

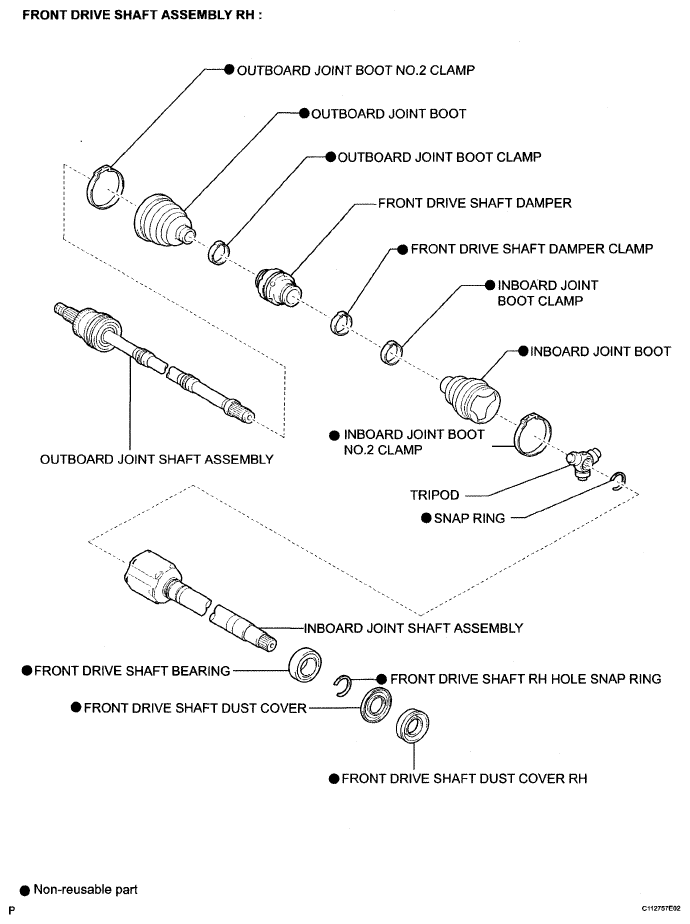

Fig 3: Identifying Front Drive Shaft Components (3 Of 3)
G05202337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
