Parking Brake Pedal: Components

Fig 1: Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 2)
G05202965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

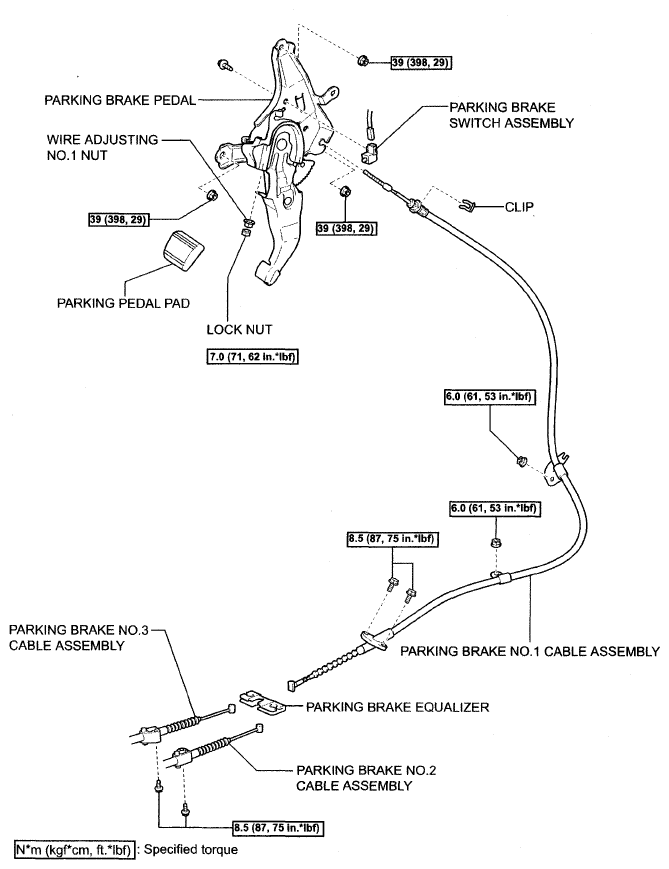

Fig 2: Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 2)
G05202966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
