Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake - Hybrid >> Parking Brake Cable >> Components

Parking Brake Cable: Components

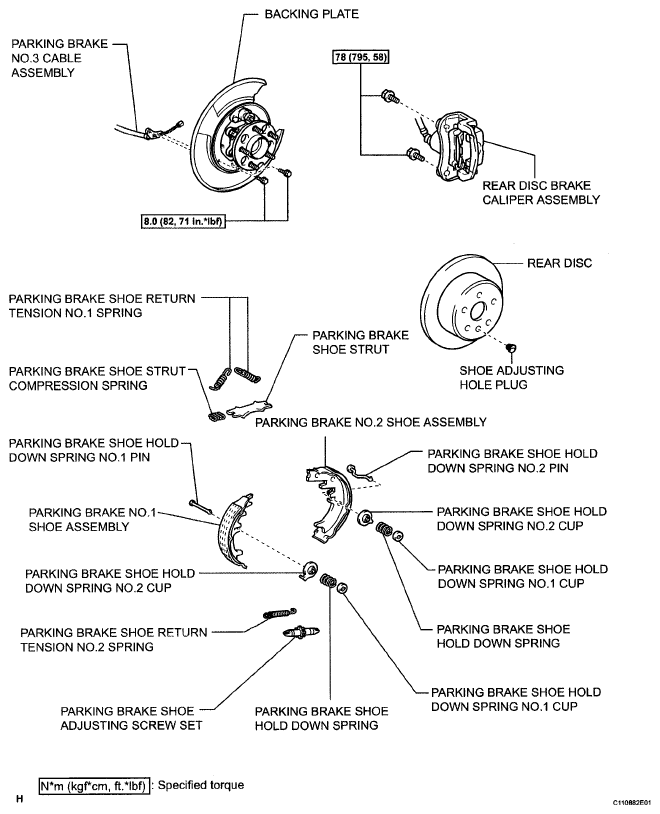

Fig 1: Parking Brake Cable Replacement Components With Torque Specifications (1 Of 2)
G05202983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

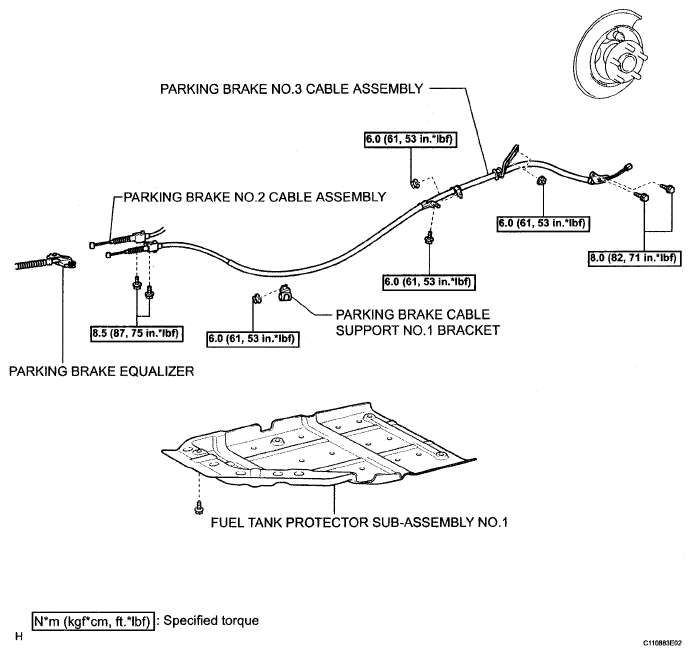

Fig 2: Parking Brake Cable With Torque Specifications (2 Of 2)
G05202984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
