Parking Brake Assembly: Components

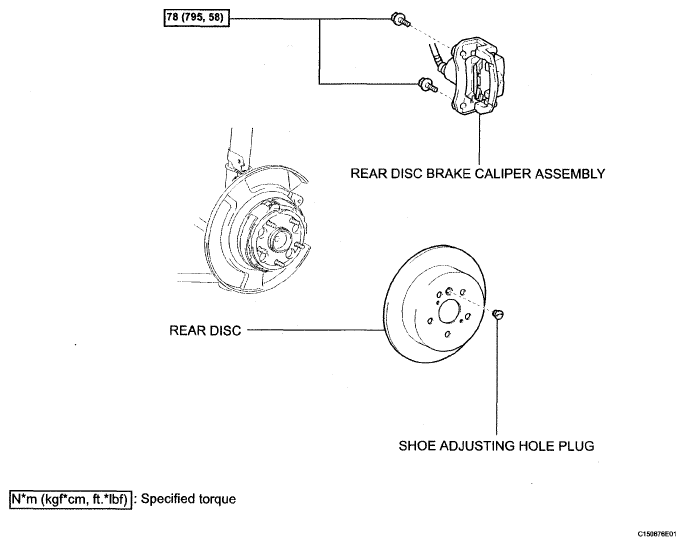

Fig 1: Parking Brake Assembly Replacement Components With Torque Specifications (1 Of 4)
G05202989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

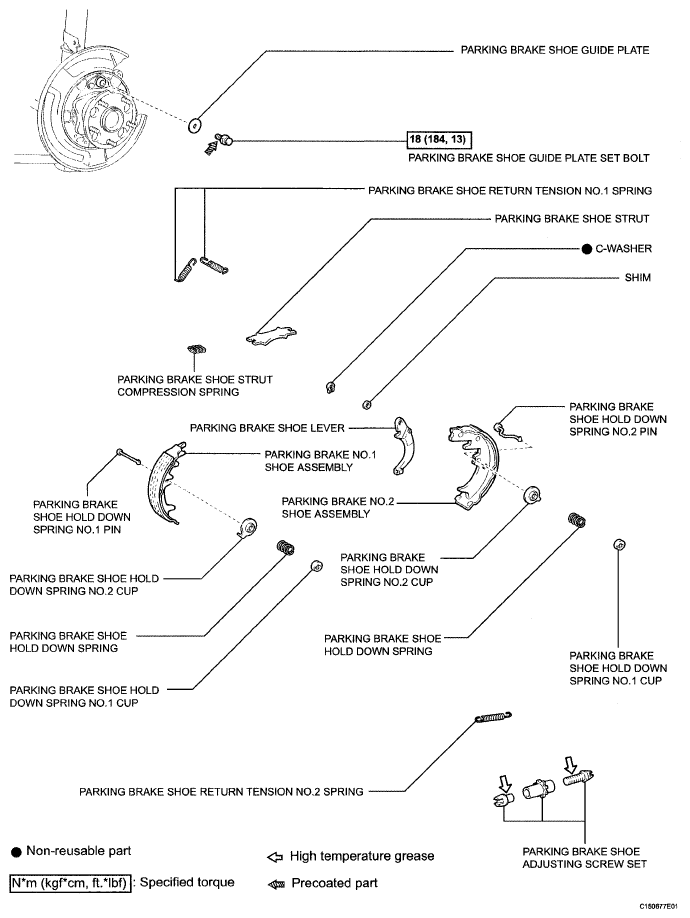

Fig 2: Parking Brake Assembly Replacement Components With Torque Specifications (2 Of 4)
G05202990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

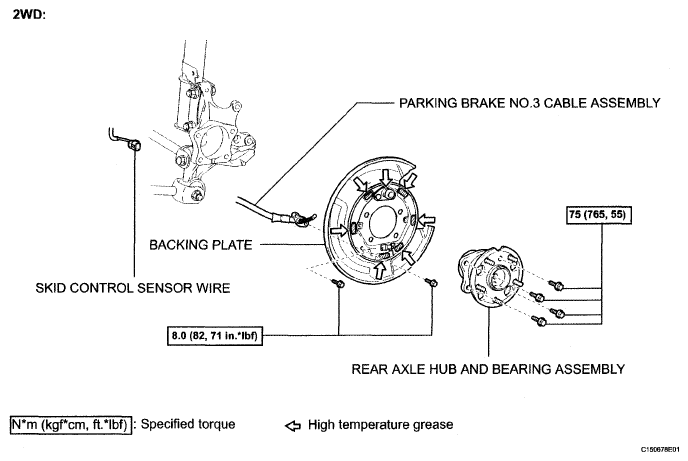

Fig 3: Parking Brake Assembly Replacement Components With Torque Specifications (3 Of 4)
G05202991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

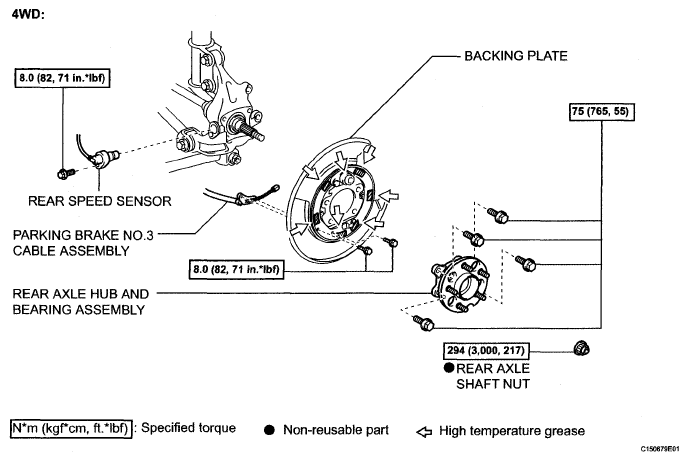

Fig 4: Parking Brake Assembly Replacement Components With Torque Specifications (4 Of 4)
G05202992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
