Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical (Hybrid) >> Rear Brake Pad, Brake Caliper & Brake Rotor >> Components

Rear Brake Pad, Brake Caliper & Brake Rotor: Components

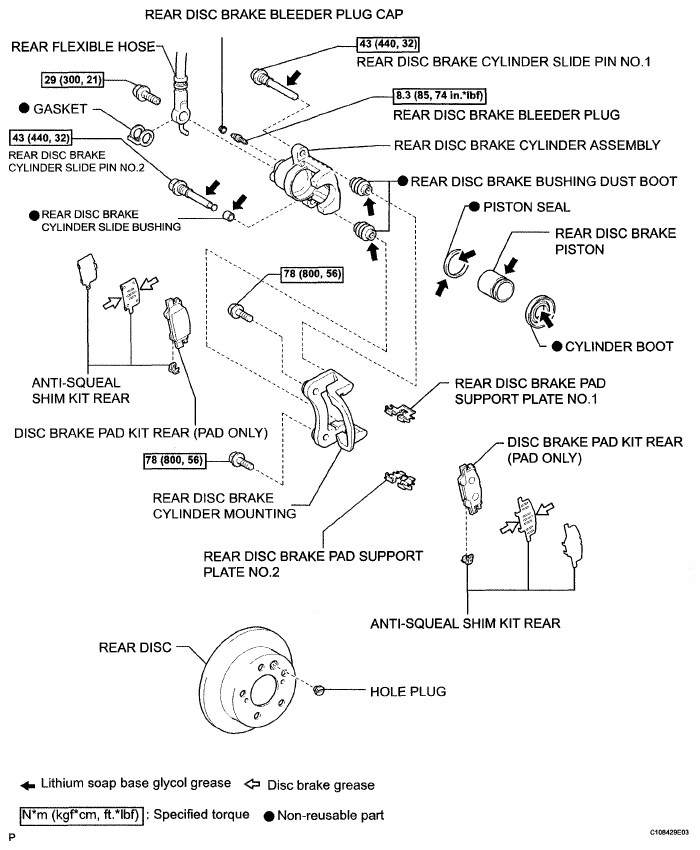

Fig 1: Rear Brake Replacement Components With Torque Specifications

G05202934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
