Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical (Hybrid) >> Front Brake Pad, Brake Caliper & Brake Rotor >> Components

Front Brake Pad, Brake Caliper & Brake Rotor: Components

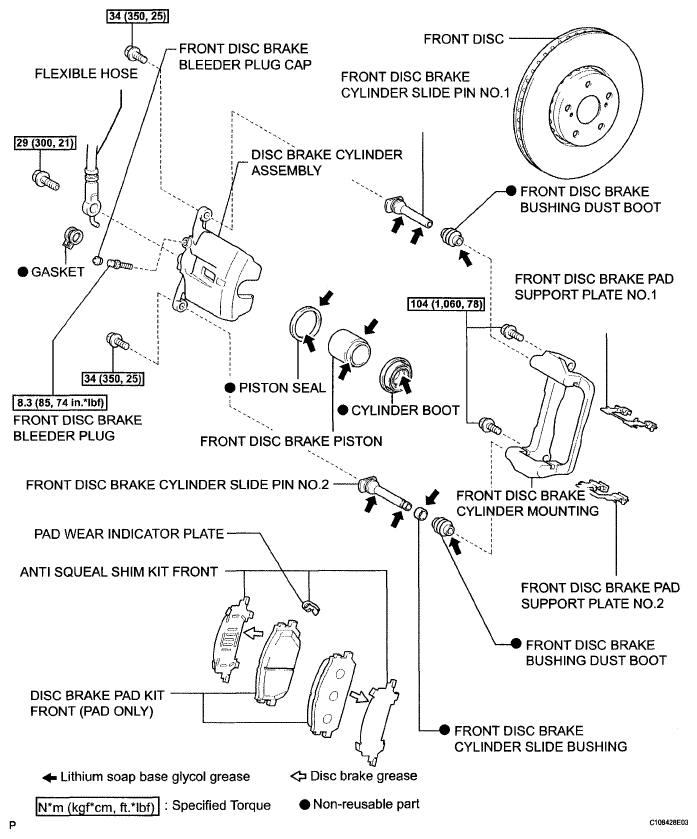

Fig 1: Front Brake Replacement Components With Torque Specifications

G05202909

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
