Brake Pedal: Components

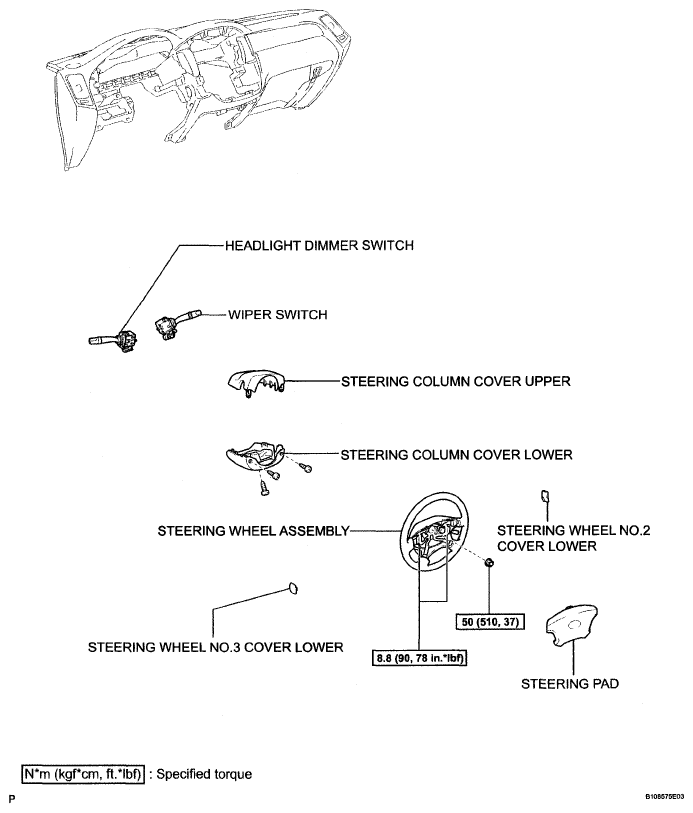

Fig 1: Steering Wheel Replacement Components With Torque Specifications
G05202870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

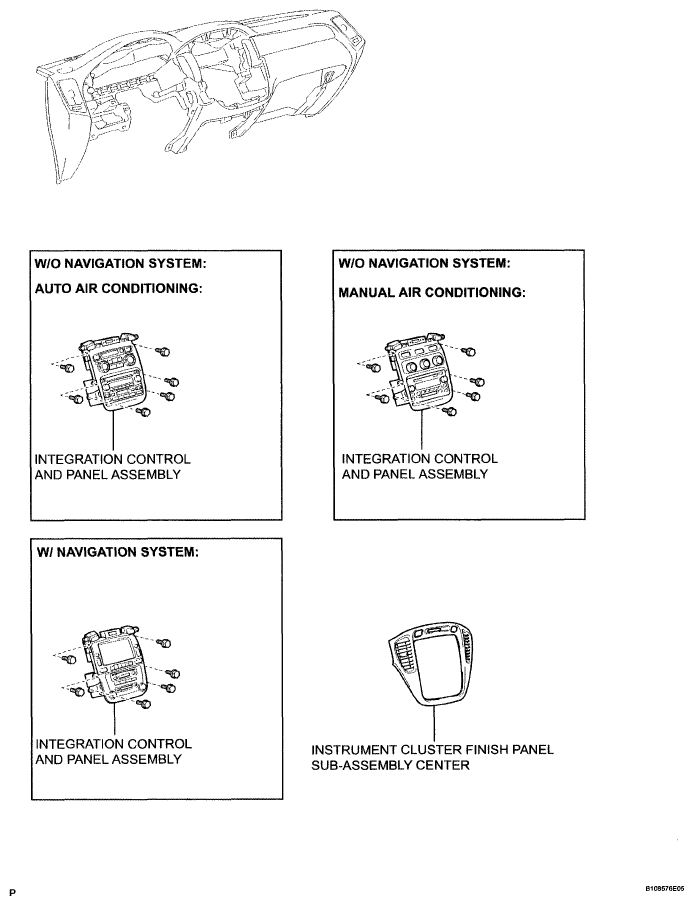

Fig 2: Identifying Instrument Cluster Components (1 Of 4)
G05202871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

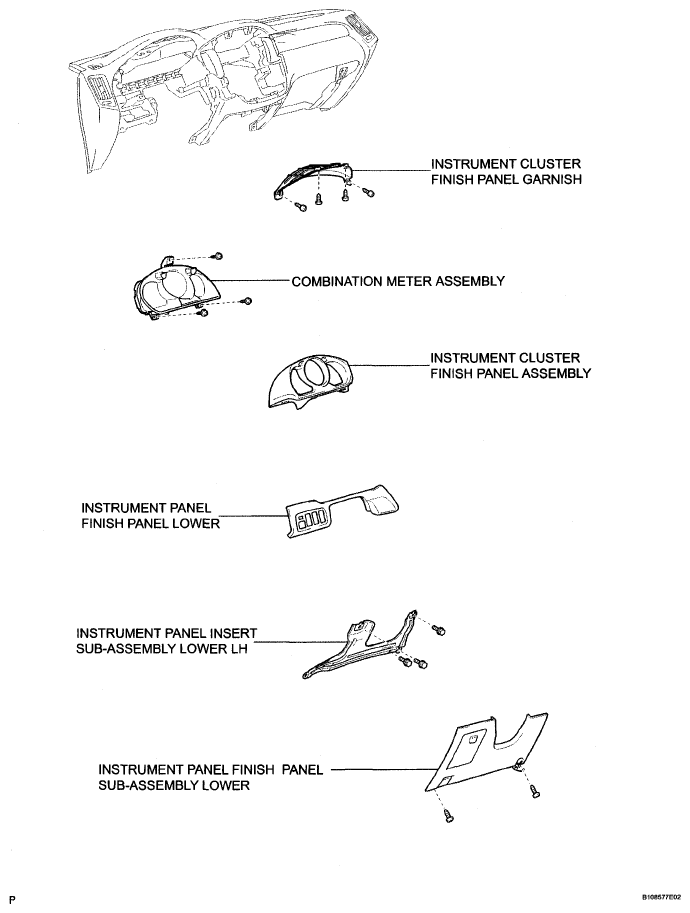

Fig 3: Identifying Instrument Cluster Components (2 Of 4)
G05202872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

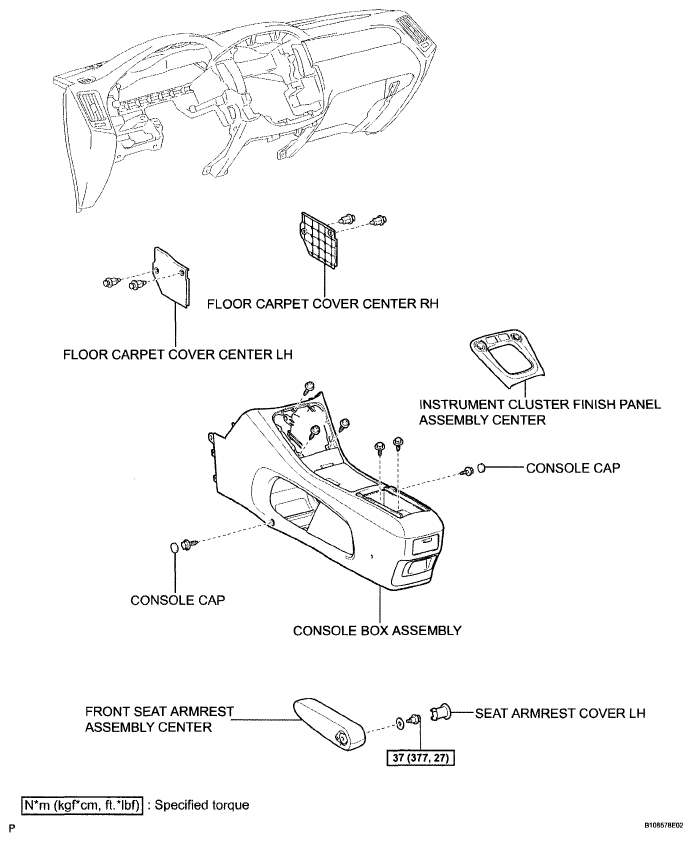

Fig 4: Instrument Cluster Replacement Components With Torque Specifications (3 Of 4)
G05202873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

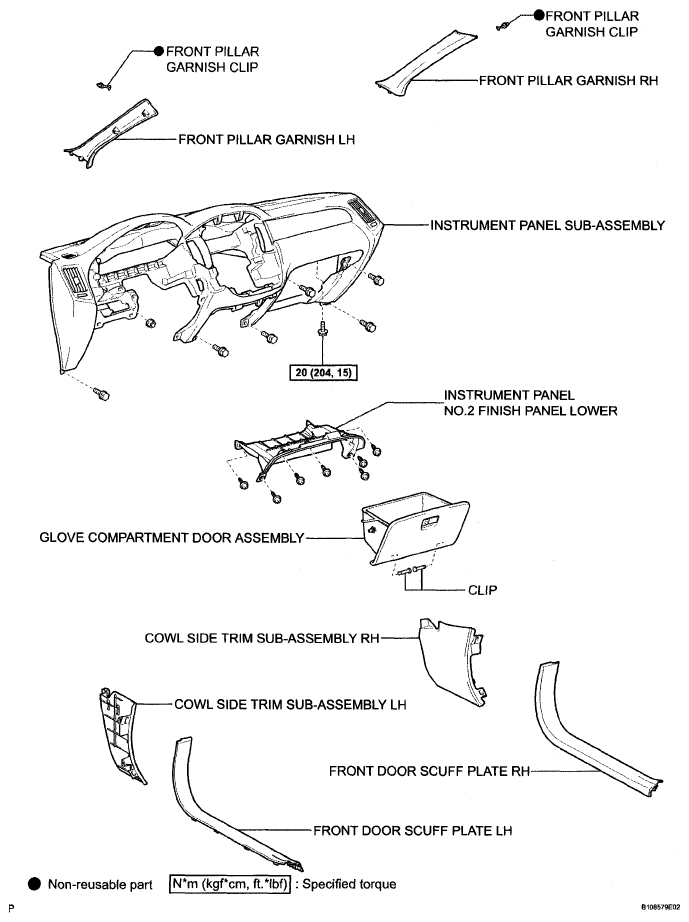

Fig 5: Instrument Cluster Replacement Components With Torque Specifications (4 Of 4)
G05202874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

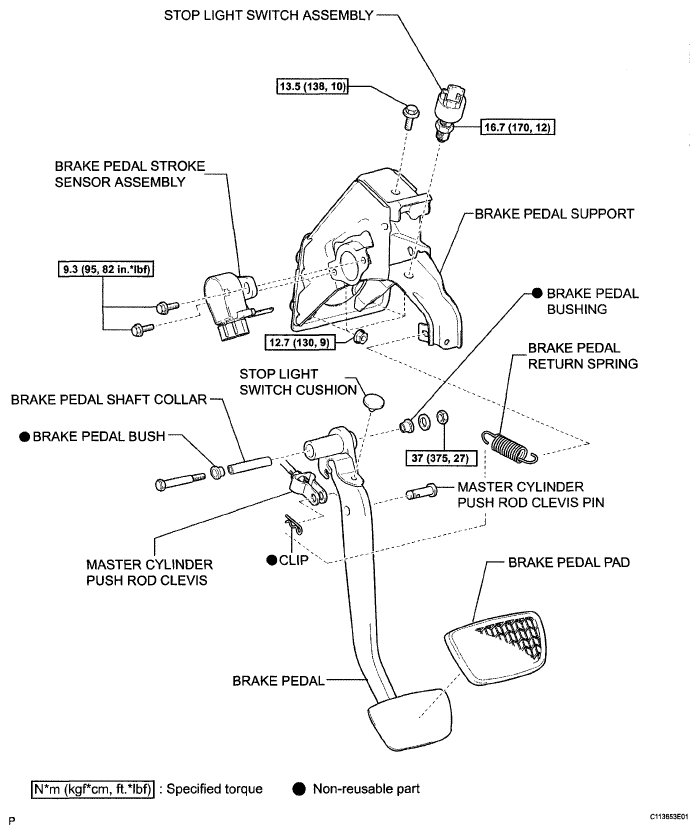

Fig 6: Brake Pedal Replacement Components With Torque Specifications
G05202875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
