Brake Master Cylinder: Components

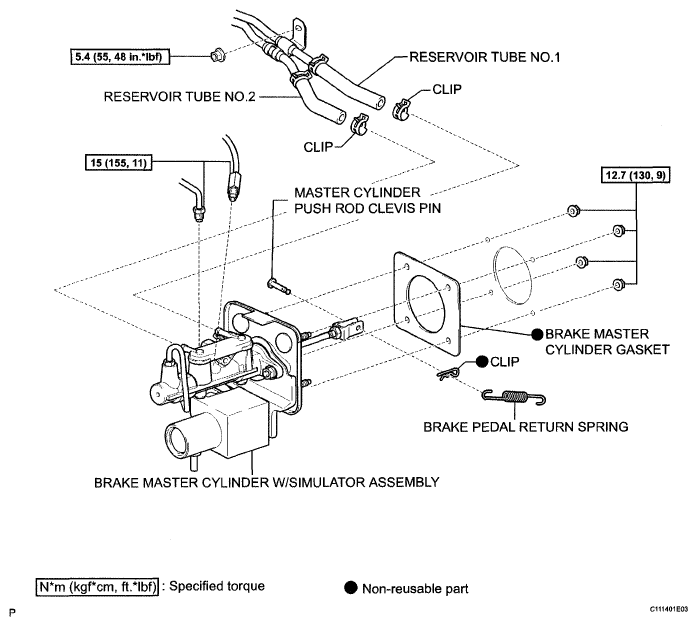

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
G05202887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

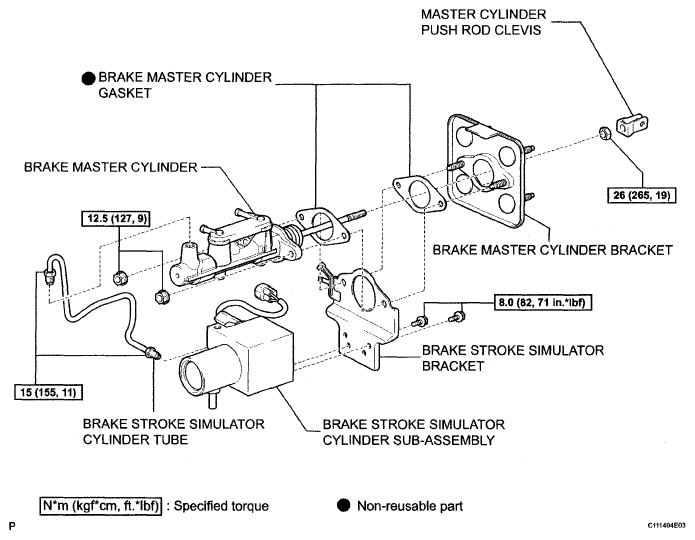

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 2)
G05202888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

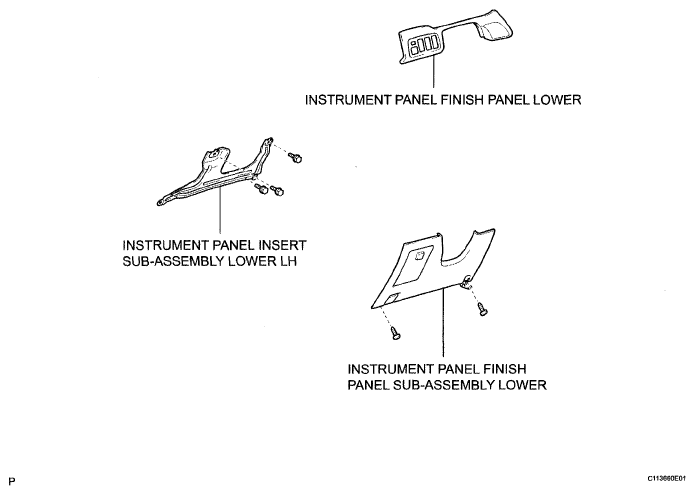

Fig 3: Identifying Instrument Panel Finish Panel Lower And Instrument Panel Sub-Assembly Lower LH
G05202889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
