Home >> Toyota >> 2007 >> Highlander Hybrid Limited, AWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> (Door / Hatch) (Hybrid) >> Rear Door >> Components

Rear Door: Components

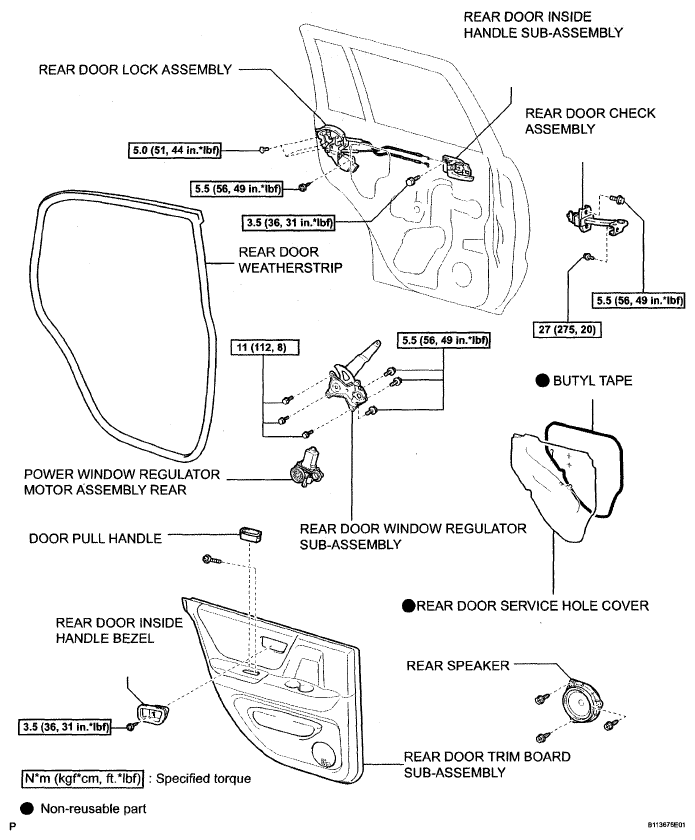

Fig 1: Rear Door Replacement Components With Torque Specifications (1 Of 2)
G05205470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

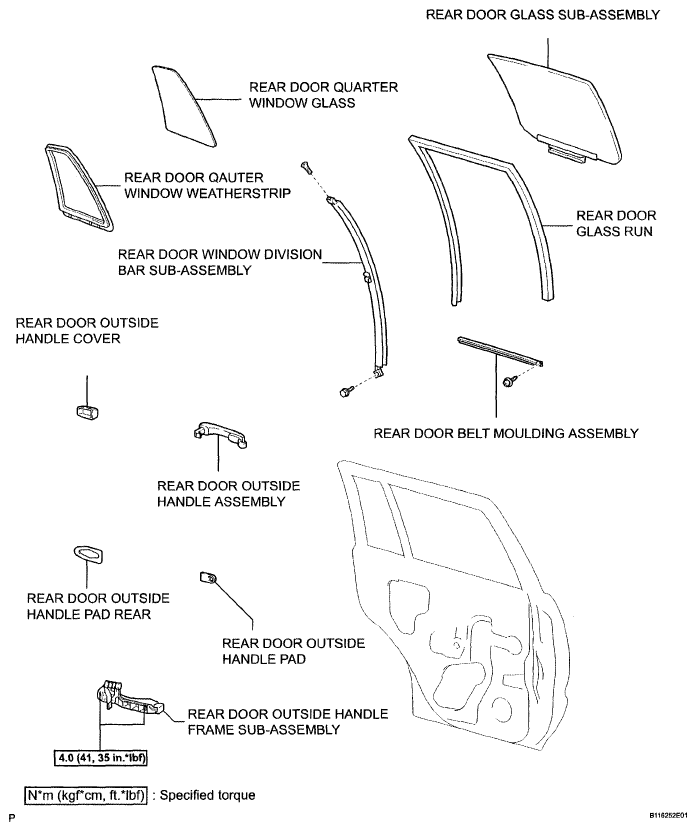

Fig 2: Rear Door Replacement Components With Torque Specifications (2 Of 2)
G05205471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
