Rear Door: Adjustment

(See AIRBAG SYSTEM )

1. Check that the clearance is within the standard range.

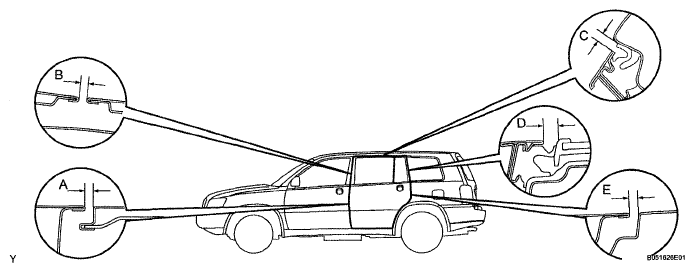

   Fig 1: Checking Clearance Of Rear Door

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard range

   CLEARANCE SPECIFICATION



   A	5.0 +-1.5 mm (0.197 +- 0.059 in.)
   B	5.0 +-1.5 mm (0.197 +- 0.059 in.)
   C	5.3 +- 1.5 mm (0.209 +- 0.059 in.)
   D	7.3 +-1.5 mm (0.287 +- 0.059 in.)
   E	5.0 +-1.5 mm (0.197 +- 0.059 in.)

1. Loosen the bolts on the body side to adjust the door front and back, up and down.

   Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

2. Loosen the bolts on the door side to adjust the door up and down, and the door front side to side.

   Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)

   HINT:

   Perform this procedure after replacing the centering bolt with the supplied bolt.

   Fig 2: Identifying Bolts On Door Side

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When adjusting the door rear side to side and the rear door lock striker plate assembly, use a "Torx" socket wrench (T40) to loosen the screws until the striker can move. Lightly tap it with a brass bar for adjustment.

   Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

   Fig 3: Identifying Rear Door Lock Striker Plate Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See INITIALIZATION )
