Parts Location

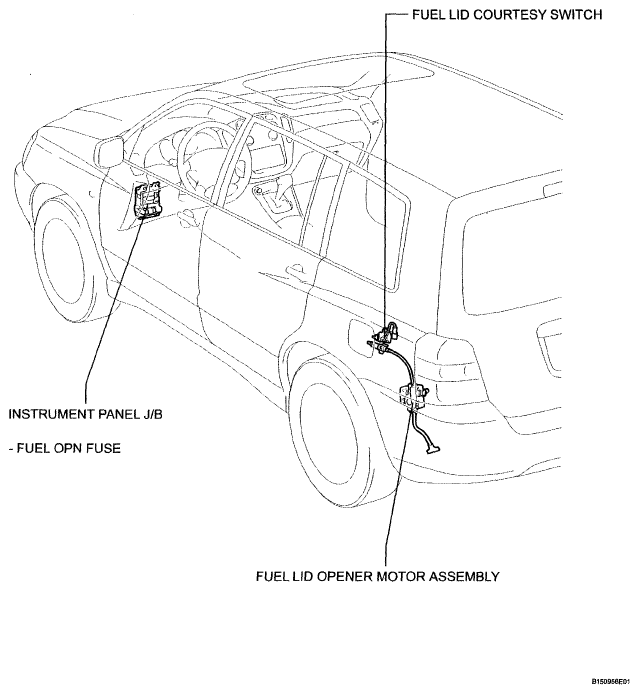

Fig 1: Identifying Fuel Lid Opener System Parts Location (1 Of 2)
G05205399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

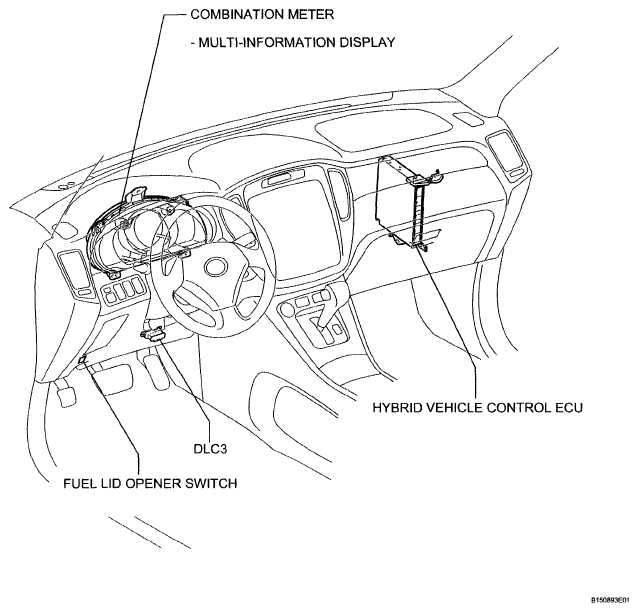

Fig 2: Identifying Fuel Lid Opener System Parts Location (2 Of 2)
G05205400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
