Front Door: Components

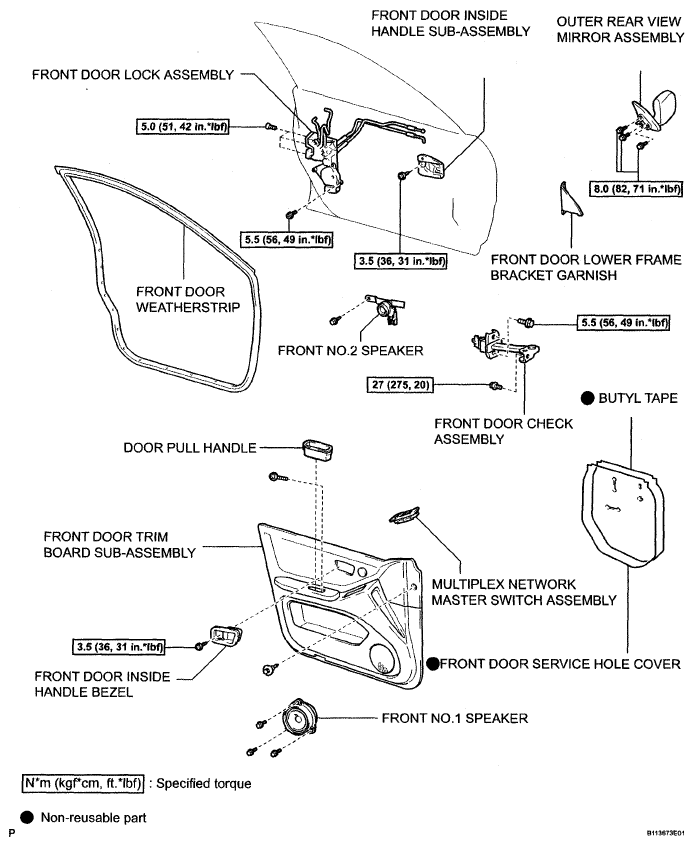

Fig 1: Front Door Replacement Components With Torque Specifications (1 Of 2)
G05205432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

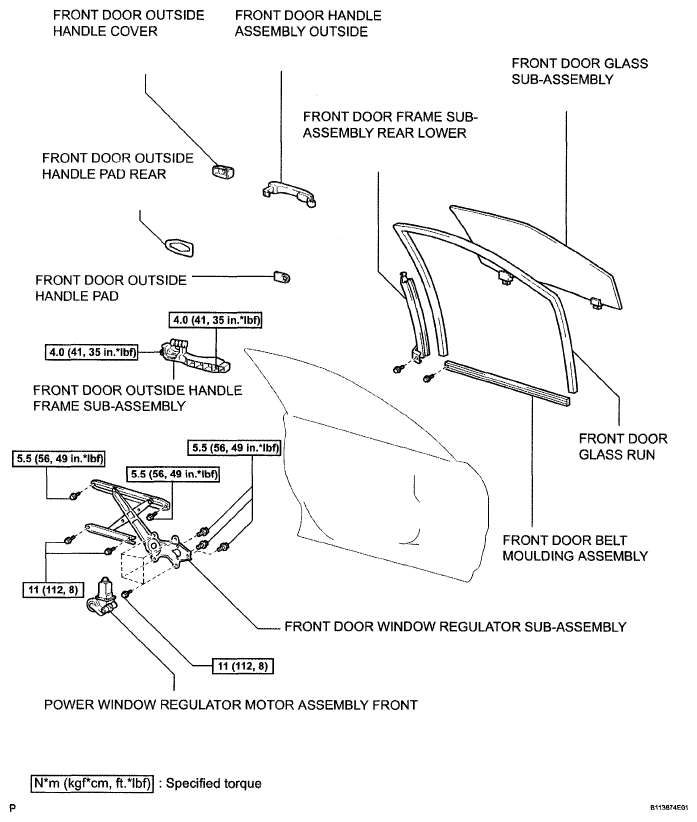

Fig 2: Front Door Replacement Components With Torque Specifications (2 Of 2)
G05205433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
