Back Door: Components

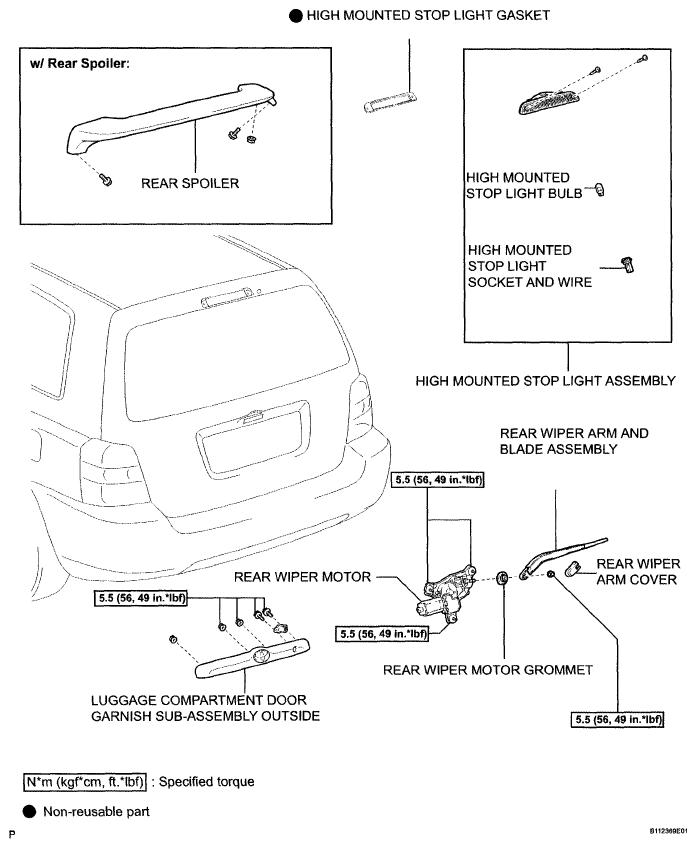

Fig 1: Back Door Replacement Components With Torque Specifications (1 Of 2)
G05205506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

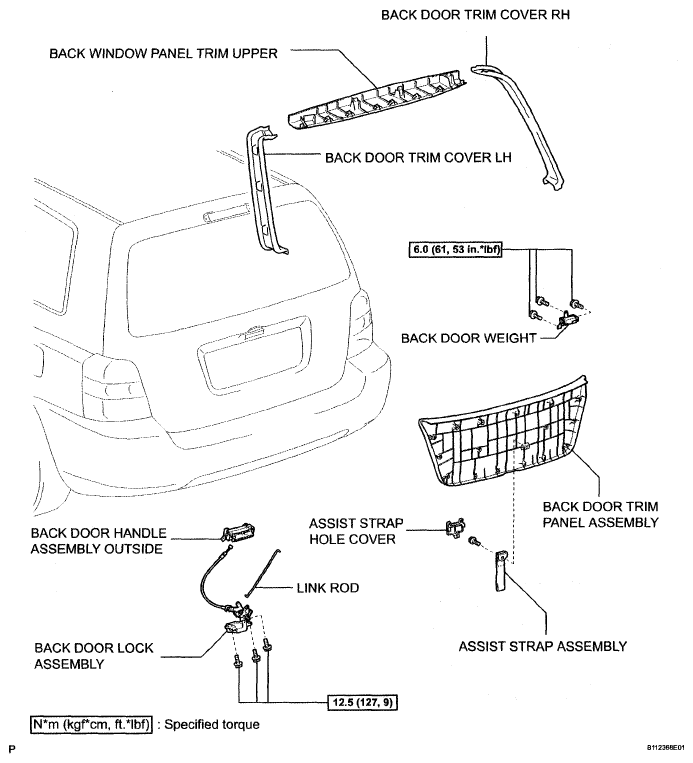

Fig 2: Back Door Replacement Components With Torque Specifications (2 Of 2)
G05205507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
