Back Door Support: Components

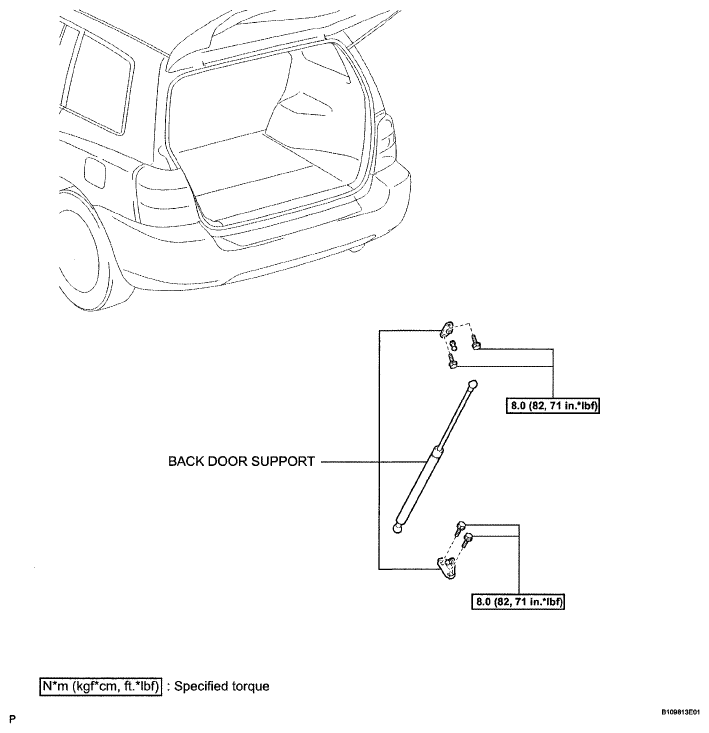

Fig 1: Back Door Support Replacement Components With Torque Specifications

G05244236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
