How To Proceed With Troubleshooting

  1. DIAGNOSIS OF TIRE VIBRATION
    1. Inspection procedure

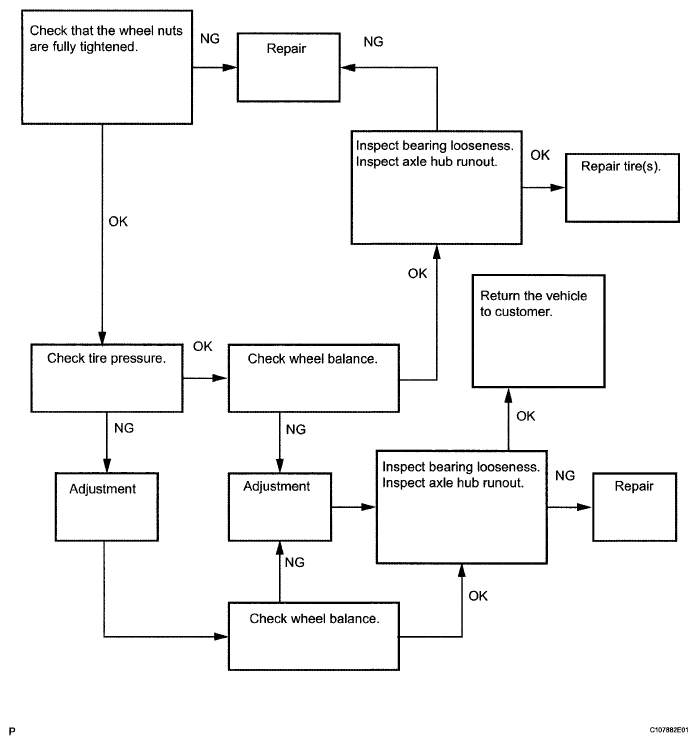

      Fig 1: Tire And Wheel Diagnostic Flow Chart (Tire Vibration)
      G05202617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DIAGNOSIS OF IRREGULAR TIRE WEAR
    1. Inspection procedure
      Fig 2: Tire And Wheel Diagnostic Flow Chart (Irregular Tire Wear)
      G04977809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
