REAR NO. 1 SEAT ASSEMBLY (w/ Rear No. 2 Seat for RH Side): Components

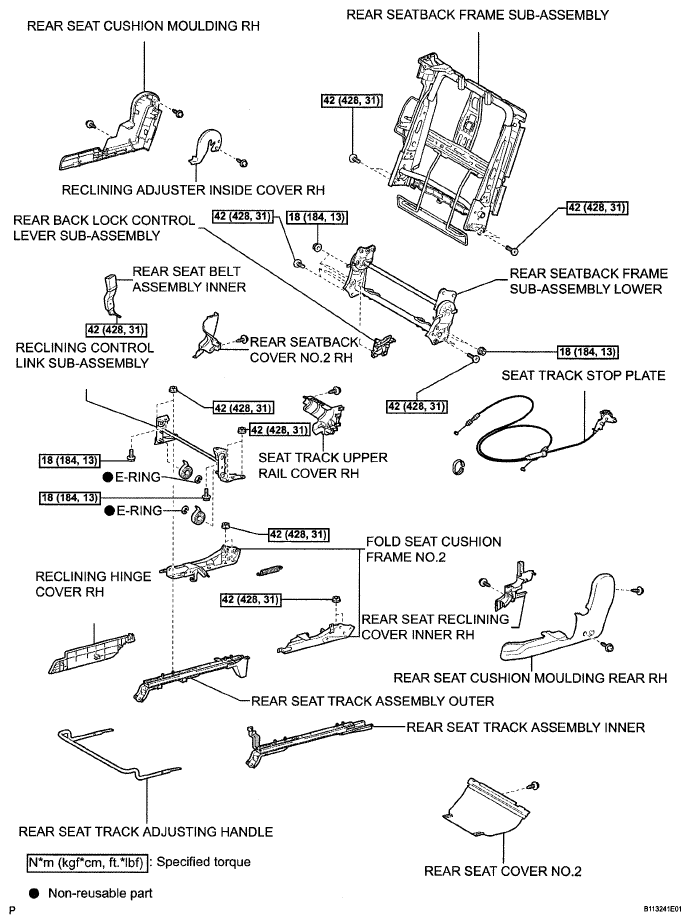

Fig 1: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (W/ Rear No. 2 Seat For RH Side) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

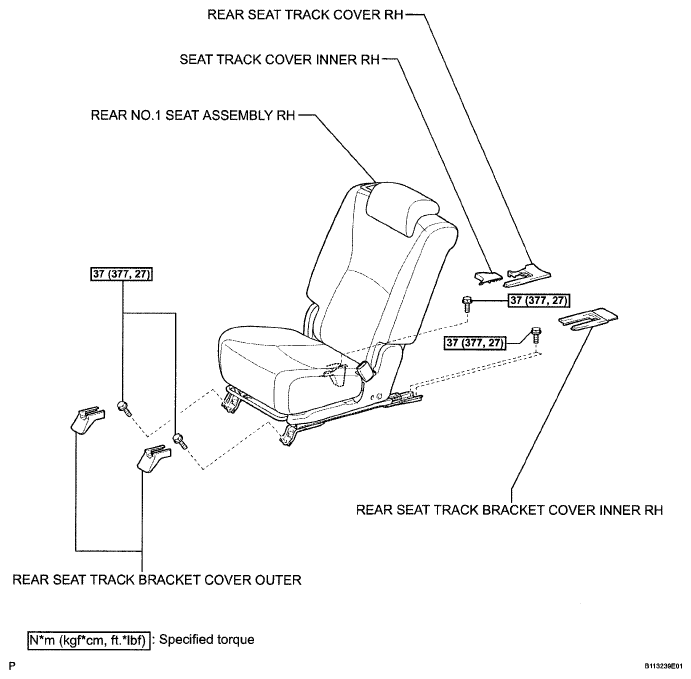

Fig 2: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (W/ Rear No. 2 Seat For RH Side) (2 Of 3)

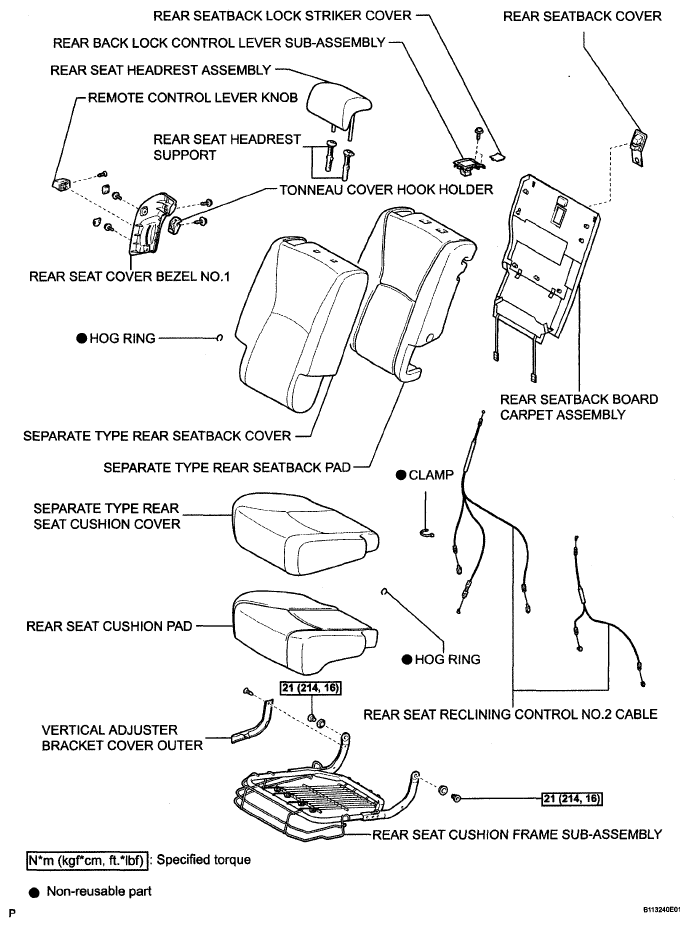

Fig 3: Rear No. 1 Seat Assembly Replacement Components With Torque Specifications (W/ Rear No. 2 Seat For RH Side) (3 Of 3)
