System Diagram

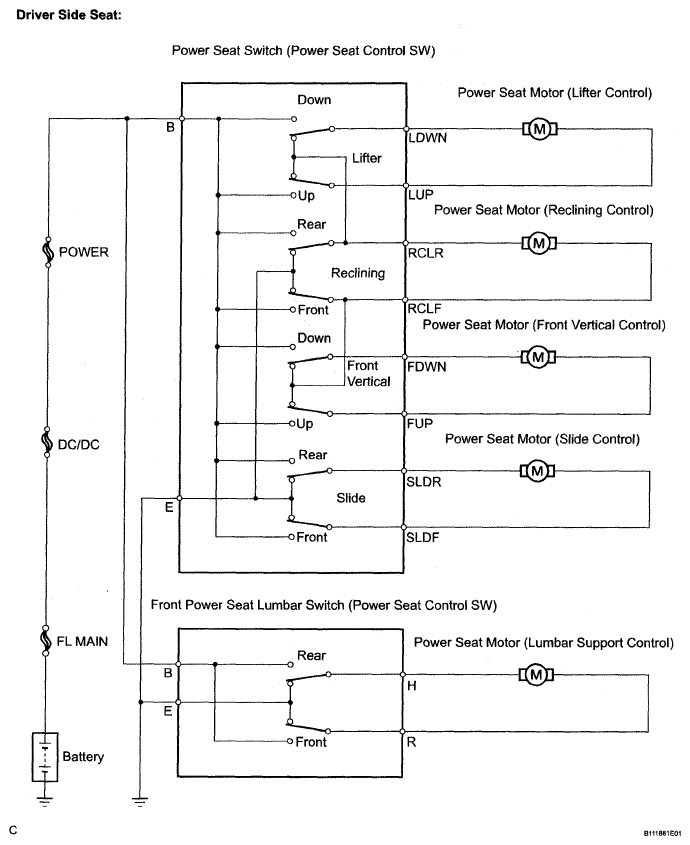

Fig 1: Front Power Seat Control System Diagram - Driver Side Seat
G05205254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

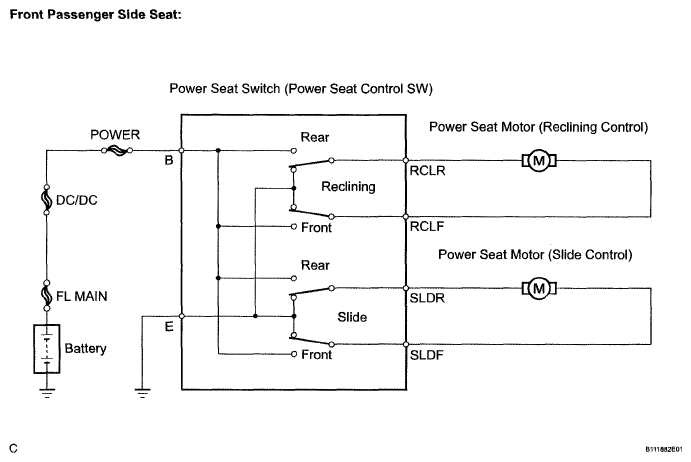

Fig 2: Front Power Seat Control System Diagram - Front Passenger Seat
G05205255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
