FRONT SEAT ASSEMBLY (for Power Seat): Components

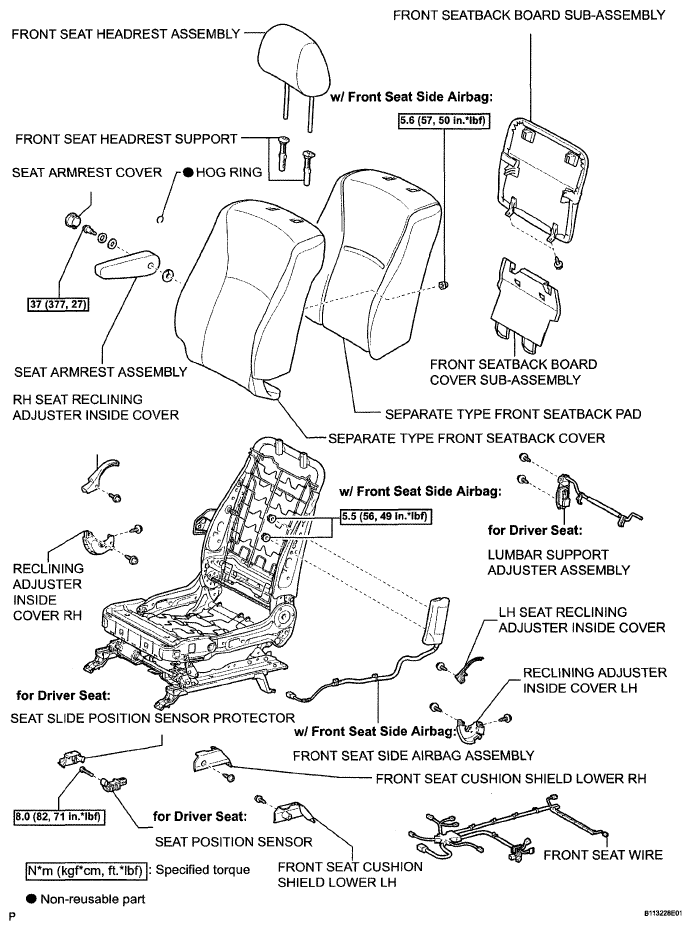

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (For Power Seat) (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

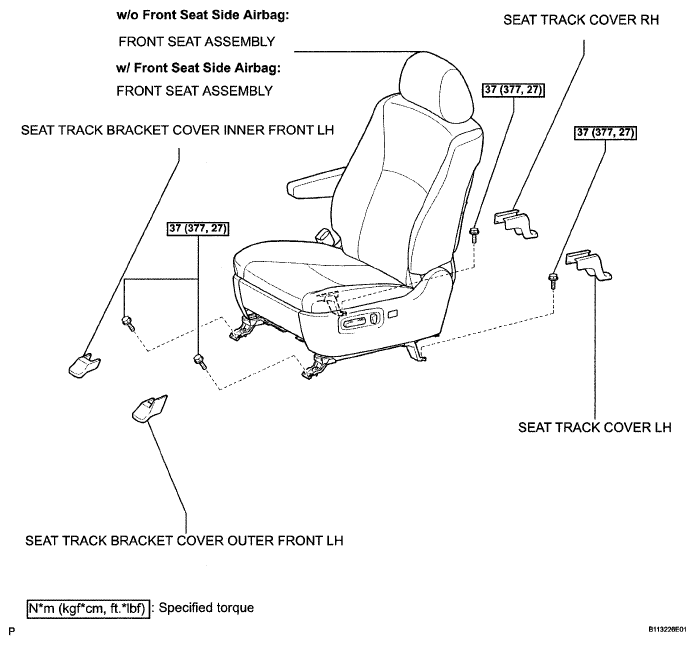

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (For Power Seat) (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

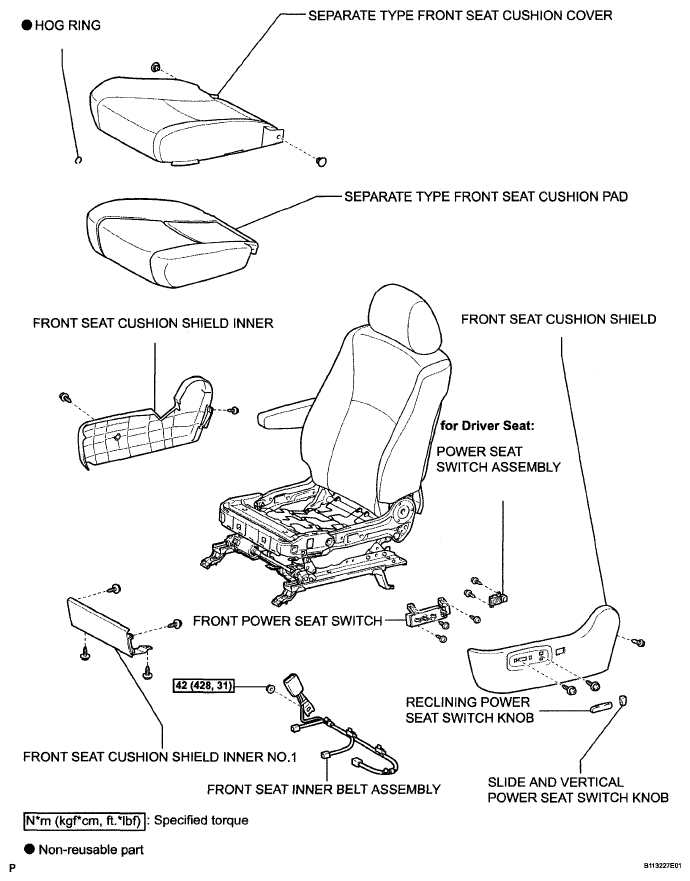

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (For Power Seat) (3 Of 4)

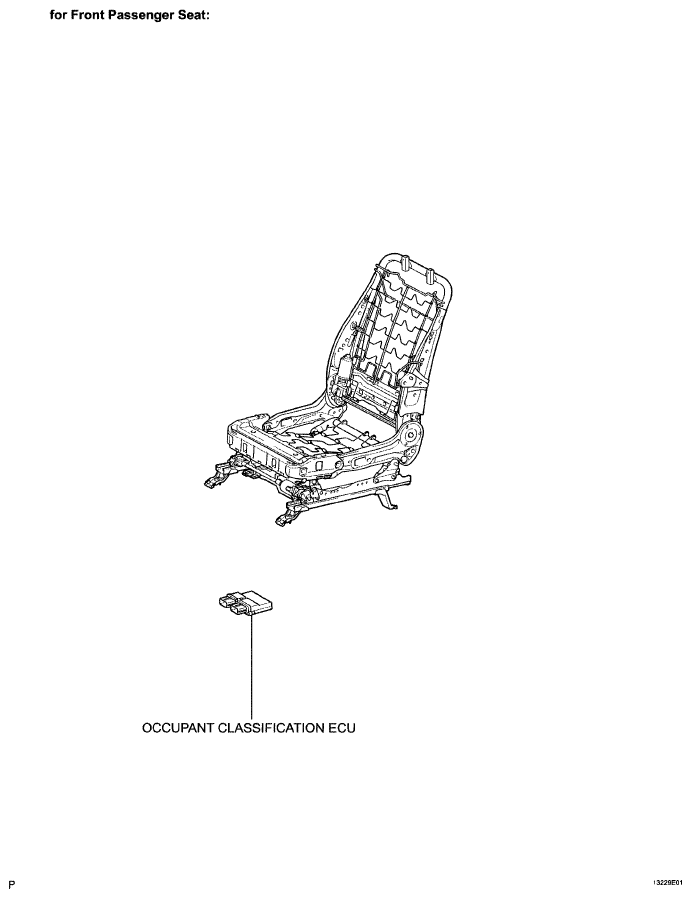

Fig 4: Identifying Front Seat Assembly Components (For Power Seat) (4 Of 4)
