ROOF HEADLINING (w/ Rear No. 2 Seat): Components

Fig 1: Identifying Roof Headlining Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

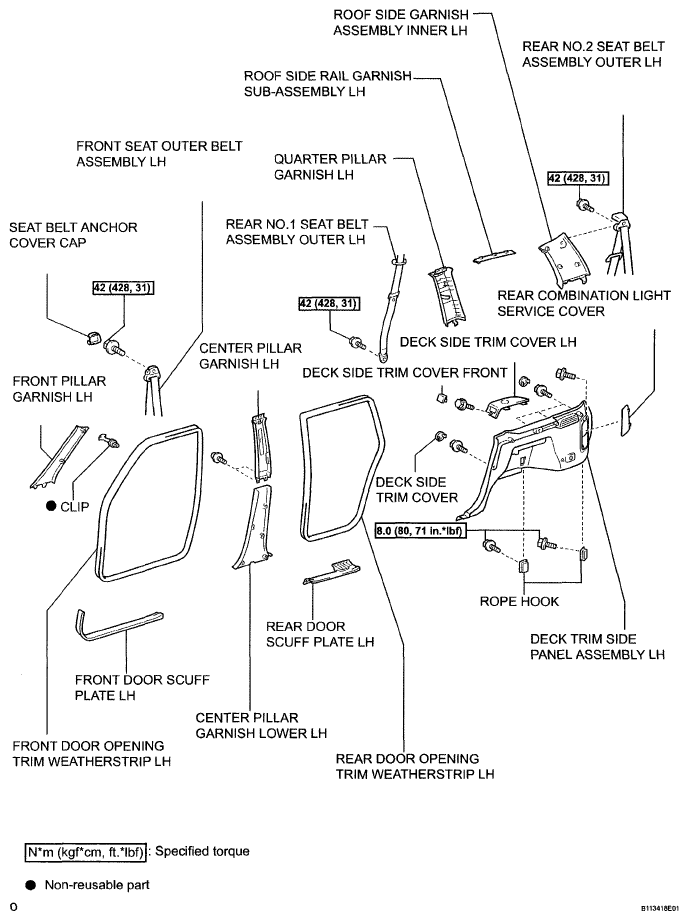

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

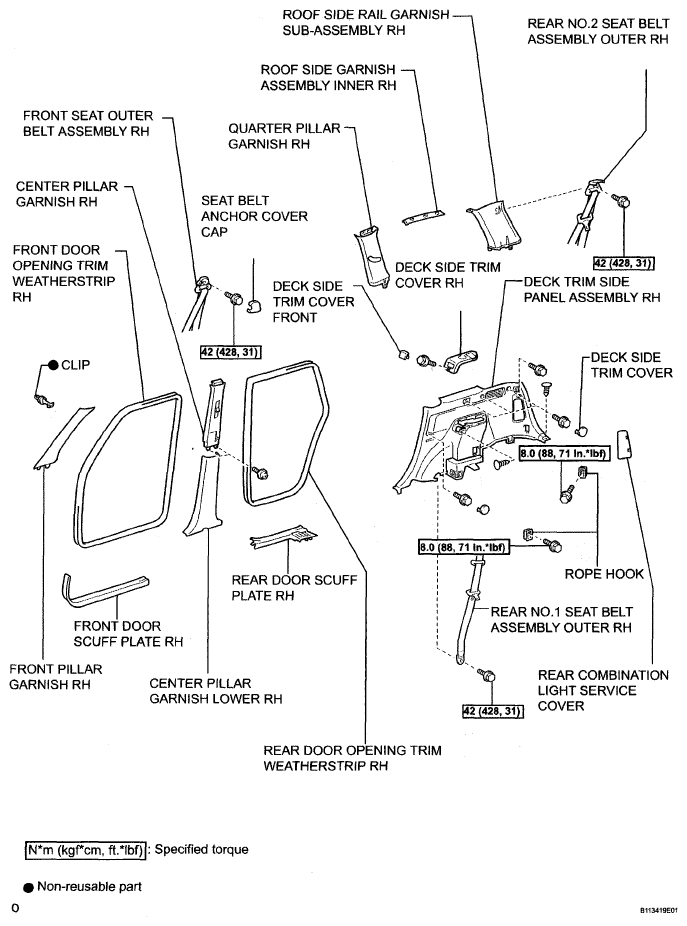

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

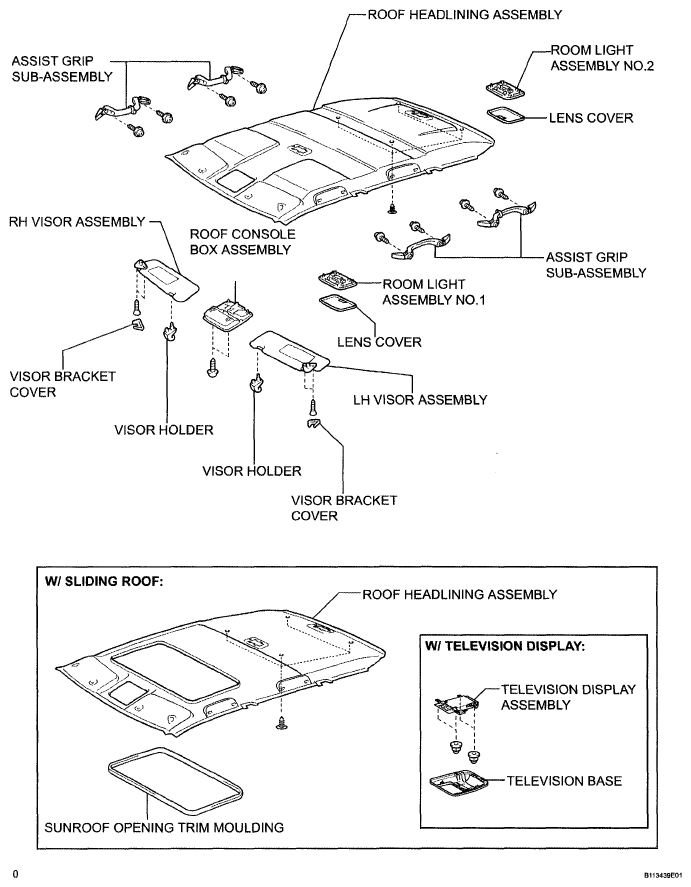

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Roof Headlining Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
