Rear Bumper: Components

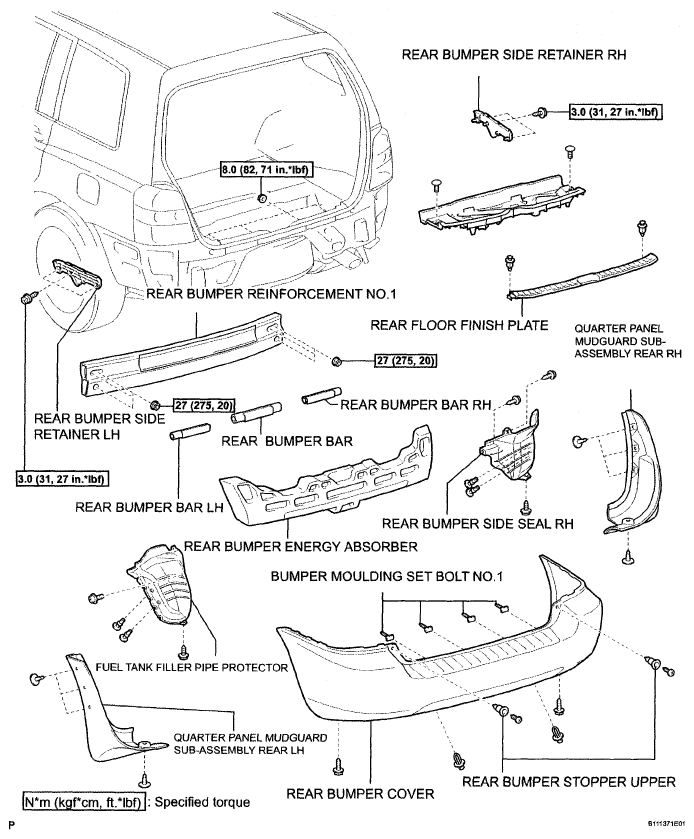

Fig 1: Rear Bumper Replacement Components With Torque Specifications

G05205553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
