Name Plate: Replacement

  1. INSTALL NAME PLATE

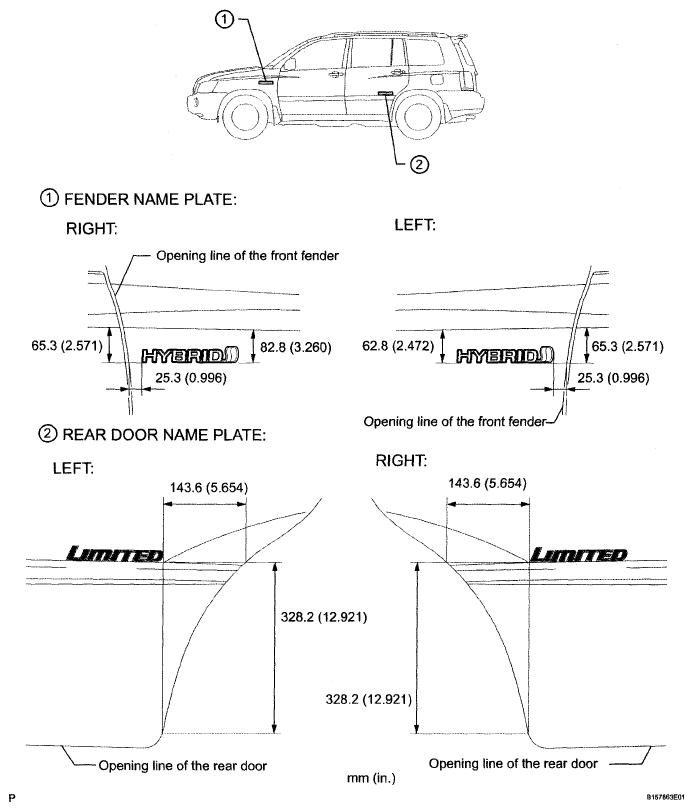

    Fig 1: Identifying Name Plate With Specifications (1 Of 2)
    G05205571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

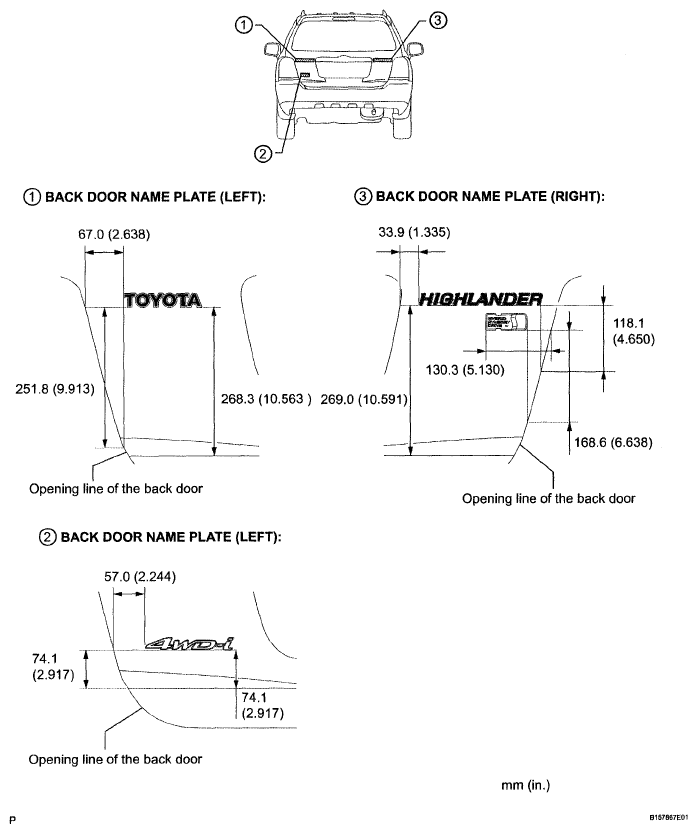

    Fig 2: Identifying Name Plate With Specifications (2 Of 2)
    G05205572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
