Front Bumper: Components

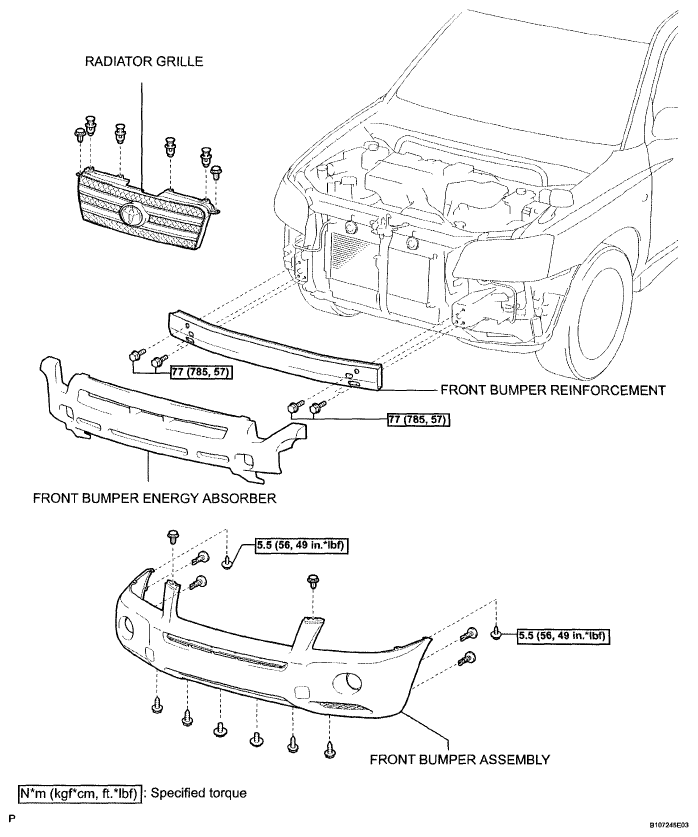

Fig 1: Front Bumper Replacement Components With Torque Specifications (1 Of 2)
G05205535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

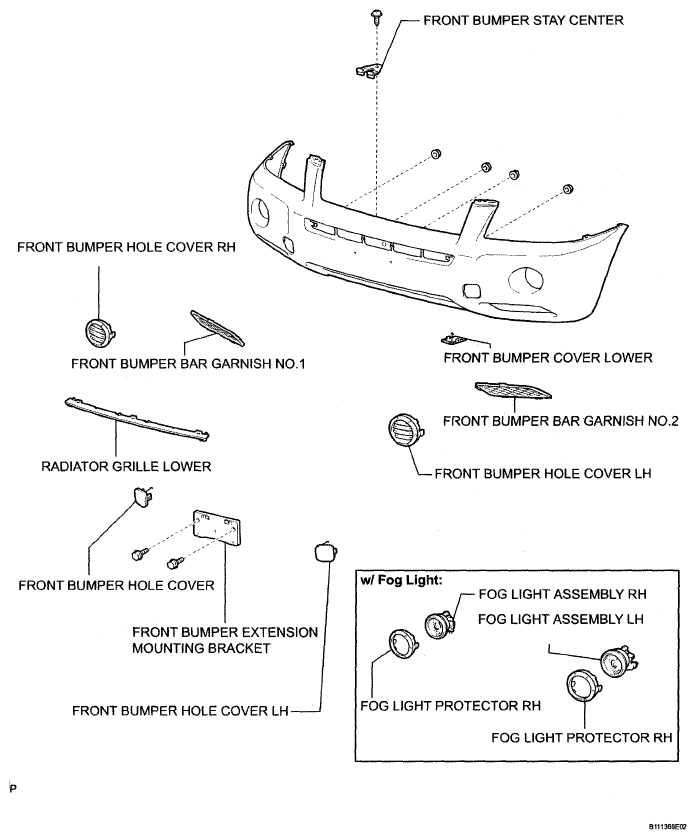

Fig 2: Identifying Front Bumper Components (2 Of 2)
G05205536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
