Toyota
>>
2007
>>
Highlander Hybrid Limited, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Horns
>>
Horn (Hybrid)
>>
High Pitched Horn
>>
Components
High Pitched Horn: Components

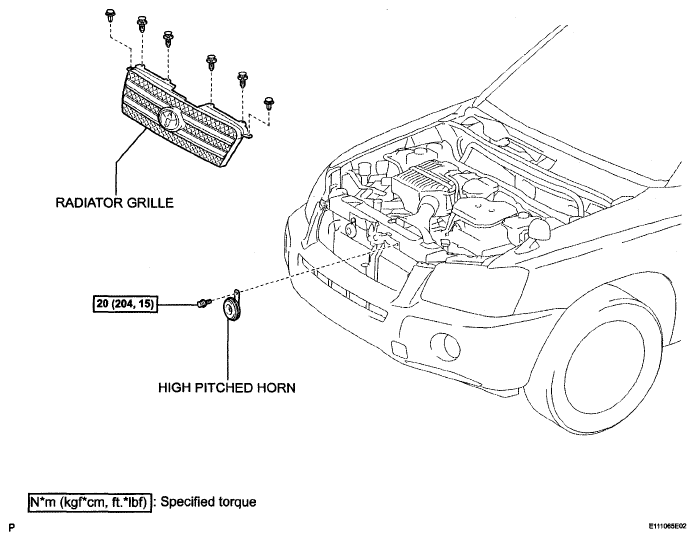

Fig 1: High Pitched Horn Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
