Parts Location

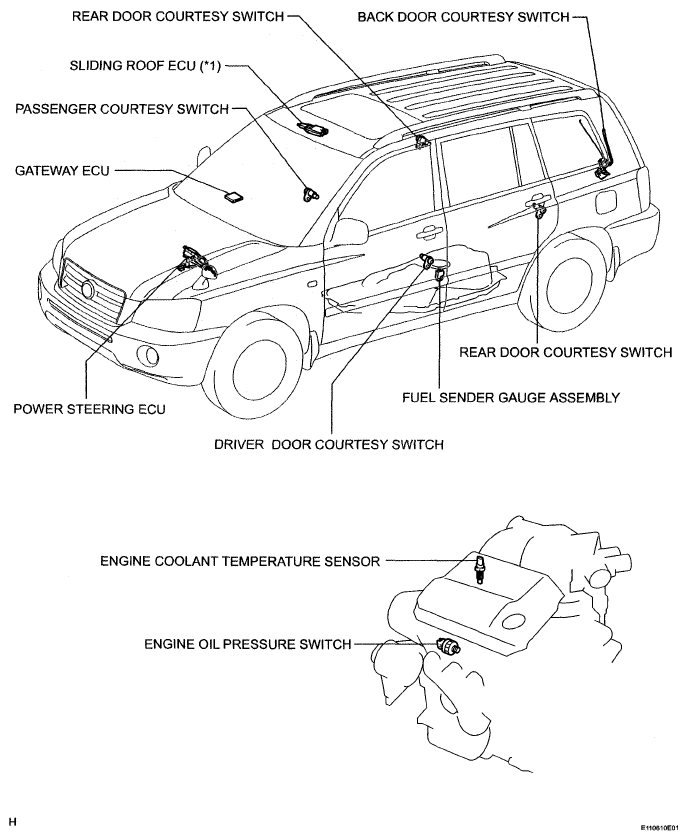

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 2)
G05204510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

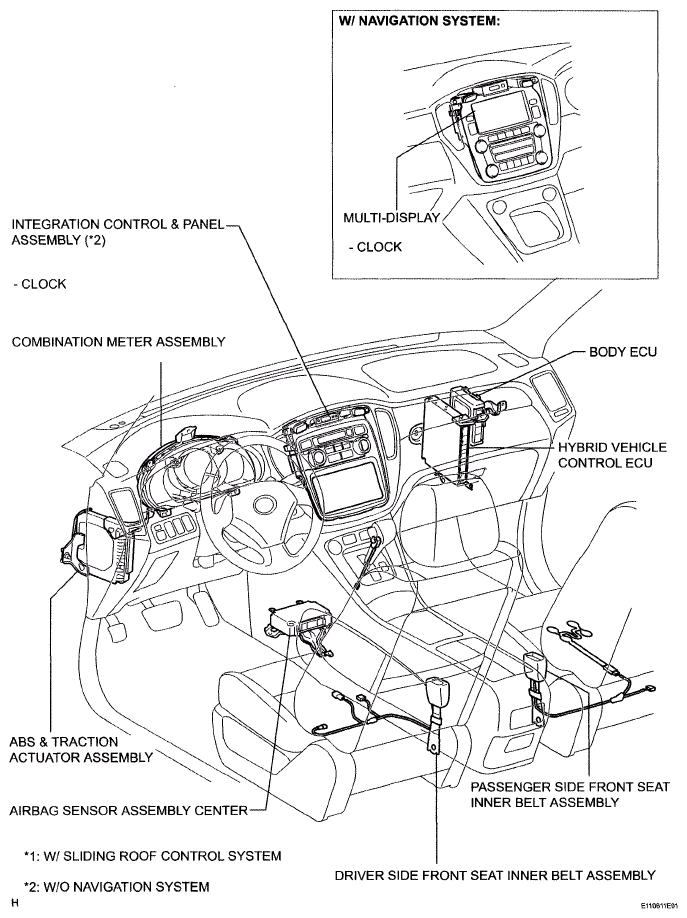

Fig 2: Identifying Meter/Gauge System Components Location (2 Of 2)
G05204511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
