Fuel Receiver Gauge Malfunction: Wiring Diagram

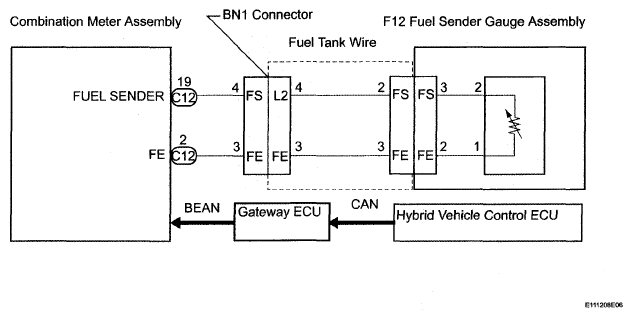

Fig 1: Fuel Receiver Gauge Malfunction - Wiring Diagram

G05204542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
