Entire Combination Meter does not Operate: Wiring Diagram

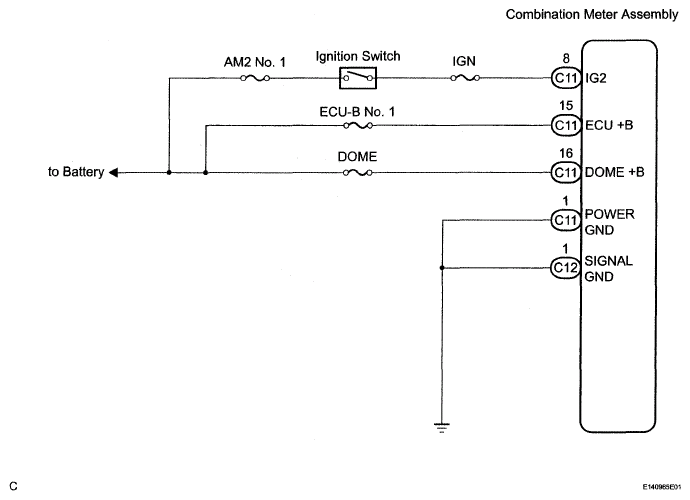

Fig 1: Entire Combination Meter - Wiring Diagram
G05204536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
