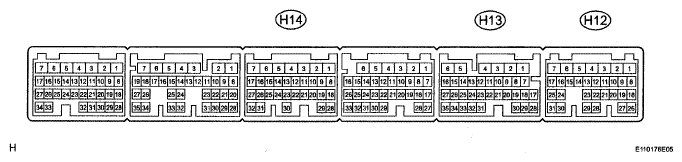

| TC - E1 (H12-3 - H14-5) |
O - W-B |
Ground |
Ignition switch: ON |
10 to 14 V |
| TC-E1 (H12-3 - H14-5) |
O - W-B |
Ground |
Ignition switch: ON, Connect terminals TC and CG of DLC3 |
2 V or less |
| SPDI- -E1 (H12-24 - H14-5) |
SB - W-B |
Vehicle speed signal |
Engine start → Car stoppage |
Below 1.5 V → 4.7 to 16 V |
| SPDI- -E1 (H12-24 - H14-5) |
SB - W-B |
Vehicle speed signal |
during pedal released (Pulse generated) |
3 to 7 V |
| ST1- -E1 (H12-25 - H14-5) |
LG - W-B |
Stop light signal |
Ignition switch: ON, Depress brake pedal |
1 V or less |
| ST1- -E1 (H12-25 - H14-5) |
LG - W-B |
Stop light signal |
Ignition switch: ON, Release brake pedal |
10 to 14 V |
| STP-E1 (H12-31 - H14-5) |
B - W-B |
Stop light signal |
Ignition switch; ON, Depress brake pedal |
10 to 14 V |
| STP-E1 (H12-31 - H14-5) |
B - W-B |
Stop light signal |
Ignition switch: ON, Release brake pedal |
1 V or less |
| CCS-E1 (H12-26 - H14-5) |
LG - W-B |
Cruise control main switch circuit |
Ignition switch: ON |
10 to 14 V |
| CCS - E1 (H12-26 - H14-5) |
LG - W-B |
Cruise control main switch circuit |
Ignition switch: ON, CANCEL switch: hold ON |
6.6 to 10.1 V |
| CCS-E1 (H12-26 - H14-5) |
LG - W-B |
Cruise control main switch circuit |
Ignition switch: ON, -/SET switch: hold ON |
4.5 to 7.1 V |
| CCS - E1 (H12-26 - H14-5) |
LG - W-B |
Cruise control main switch circuit |
Ignition switch: ON, +/RES switch: hold ON |
2.3 to 4 V |
| CCS-E1 (H12-26 - H14-5) |
LG - W-B |
Cruise control main switch circuit |
Ignition switch: ON, MAIN switch: hold ON |
1 V or less |
