Exhaust Pipe And Catalytic Converter: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE HEATED OXYGEN SENSOR
1. Using a clip remover, remove the clip [A].
2. Pull off the floor carpet front [B].

  Fig 1: Pulling Off Floor Carpet Front
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the heated oxygen sensor connector [C].
4. Remove the grommet [D], then pull the connector to the outside if the vehicle.

  Fig 2: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, remove the heated oxygen sensor.
  SST 09224-00010

  Fig 3: Removing Heated Oxygen Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXHAUST PIPE ASSEMBLY TAIL
1. Remove the 2 bolts and 2 compression springs [A].
2. Remove the exhaust pipe tail from the 2 exhaust pipe supports No. 4 [B].

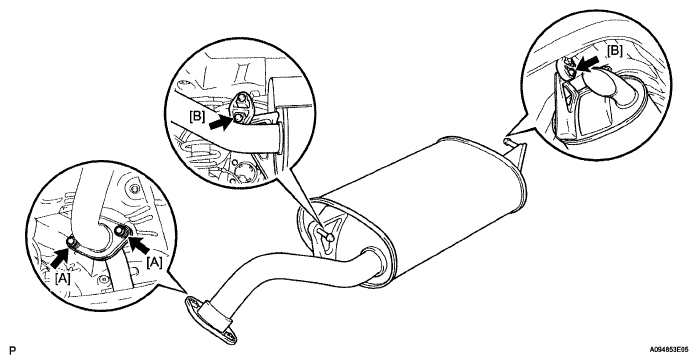

  Fig 4: Locating Exhaust Pipe Supports No. 4 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the gasket from the exhaust pipe assembly front.
Fig 5: Locating Exhaust Pipe Assembly Front Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR PANEL BRACE FRONT
1. Remove the 2 nuts and floor panel brace front.

  Fig 6: Locating Floor Panel Brace Front Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXHAUST PIPE ASSEMBLY FRONT
1. Remove the 2 bolts and 2 compression springs [A].
2. Remove the exhaust pipe front from the 2 exhaust pipe supports No. 4 [B].

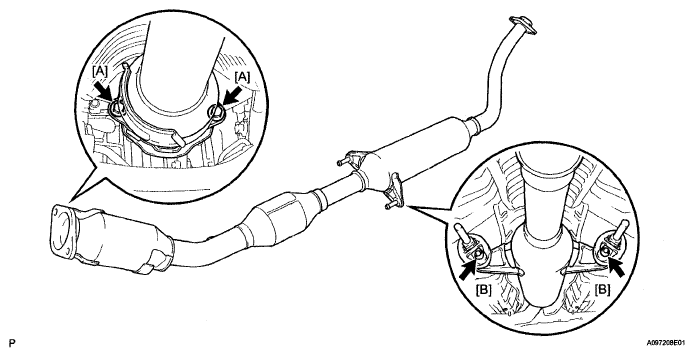

  Fig 7: Locating Exhaust Pipe Supports No. 4 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the gasket from the exhaust manifold.
Fig 8: Locating Exhaust Manifold Gasket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
