REAR BRAKE SHOE, WHEEL CYLINDER & BRAKE DRUM (for TMMC Made): Reassembly

1. Temporarily tighten the bleeder plug to the wheel cylinder, and install the bleeder plug cap.
2. Apply the lithium soap base glycol grease to the 2 new wheel cylinder cups and the 2 pistons.
3. Install the 2 wheel cylinder cups to each piston.
4. Install the compression spring and 2 pistons to the wheel cylinder.
5. Install the 2 new cylinder dust boots to the wheel cylinder.
   Fig 1: Identifying Rear Wheel Cylinder Cup Kit

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the wheel cylinder with the 2 bolts.

   Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

2. Using SST, connect the brake tube.

   SST 09023-00101

   Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)

1. Apply the high temperature grease to the shoe attached surface of backing plate.

Fig 2: Identifying High Temperature Grease Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a pliers, install the parking brake shoe lever with a new C-washer.

Fig 3: Installing Parking Brake Shoe Lever With C-Washer

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a needle-nose pliers, connect the parking brake cable No. 3 to the parking brake shoe lever.
   Fig 4: Connecting Parking Brake Cable No. 3 To Parking Brake Shoe Lever

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, install the rear brake shoe, pin, shoe hold-down spring and cup.

   SST 09718-00011

3. Connect the upper side return spring to the rear brake shoe.

Fig 5: Installing Rear Brake Shoe, Pin, Shoe Hold-Down Spring And Cup

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply the high temperature grease to the adjusting bolt.
2. Install the parking brake shoe strut set LH.

Fig 6: Locating High Temperature Grease Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the upper side return spring to the front brake shoe.
2. Using SST, install the front brake shoe, pin, shoe hold-down spring and cup.

   SST 09718-00011

   Fig 7: Installing Front Brake Shoe, Pin, Shoe Hold-Down Spring And Cup

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a needle-nose pliers, install the anchor side return spring.
   Fig 8: Installing Anchor Side Return Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the automatic adjuster lever to the rear brake shoe.
2. Using needle-nose pliers, install the upper side tension spring.
   Fig 9: Installing Upper Side Tension Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that each part is installed properly.

   If they are not installed correctly, reinstall them as shown in the illustration.

   NOTE: There should be no oil or grease adhering to the friction surfaces of the shoe lining and drum.

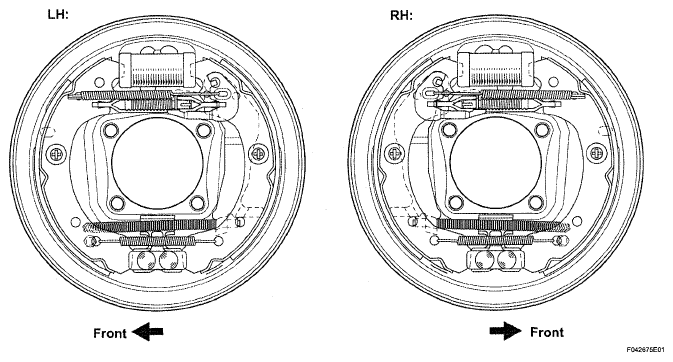

   Fig 10: Identifying Rear Drum Brake

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Aligning the matchmarks, install the rear drum sub-assembly.

1. Temporarily install the hub nuts.
2. Remove the hole plug, and turn the adjuster and expand the shoe until the drum locks.
   Fig 11: Turning Adjuster

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, back off the adjuster 8 notches.
4. Install the hole plug.
   Fig 12: Adjusting Adjuster

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
