REAR BRAKE SHOE, WHEEL CYLINDER & BRAKE DRUM (for TMC Made): Components

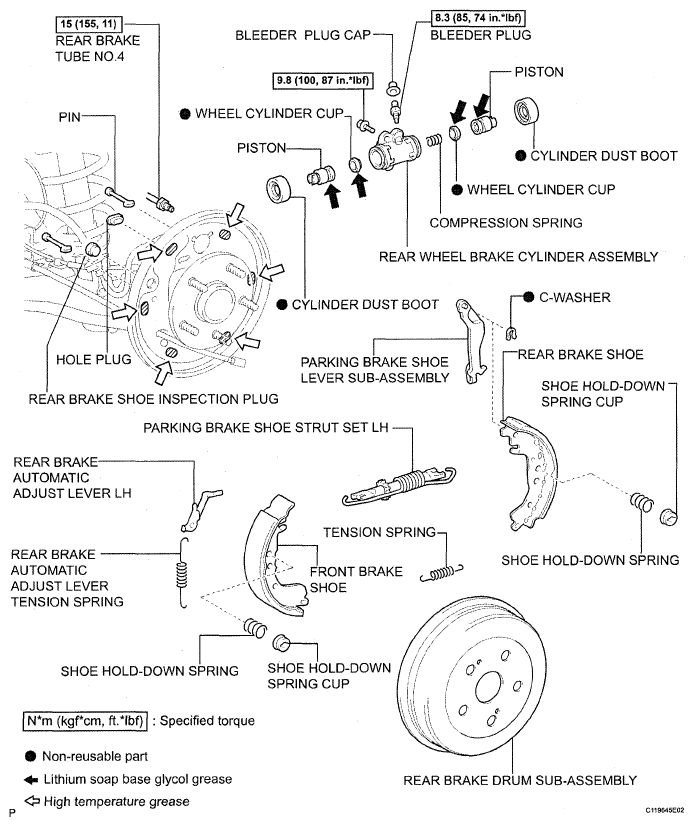

Fig 1: Rear Drum Brake Replacement Components With Torque Specifications (For TMC Made)
G05195076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
