On-Vehicle Inspection

  1. INSTALL LSPV GAUGE (SST) AND BLEED AIR
    1. Remove the bleeder plugs from the front and rear brake cylinder.

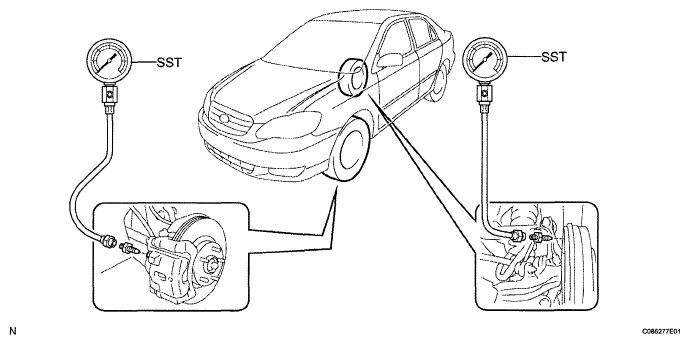

      Fig 1: Installing LSPV Gauge (SST) And Bleed Air
      G05195129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the LSPV gauge (SST), and bleed the air.

      SST 09709-29018

  2. RAISE MASTER CYLINDER AND CHECK REAR WHEEL CYLINDER PRESSURE
    1. Raise master cylinder and check rear wheel cylinder pressure.
    MASTER CYLINDER AND CHECK REAR WHEEL CYLINDER PRESSURE

    Master cylinder pressure Rear wheel cylinder pressure
    2,942 kPa (30 kgf/cm2 , 427 psi) 2,942 kPa (30 kgf/cm2 , 427 psi)
    4,903 kPa (50 kgf/cm2 , 711 psi) 3,667 kPa (37 kgf/cm2 , 531 psi)
    7,845 kPa (80 kgf/cm2 , 1,138 psi) 4,756 kPa (49 kgf/cm2 , 689 psi)

    HINT:

    When inspecting the fluid pressure, inspect the left front and right rear together, and the right front and left rear together.

    If the rear wheel cylinder pressure is improper, replace the proportioning valve assembly.

  3. REMOVE LSPV GAUGE (SST)
    1. Remove the LSPV gauge (SST).

      SST 09709-29018

    2. Install the bleeder plugs.

      Torque: 8.3 N*m (85 kgf*cm, 74 in.*lbf)

  4. BLEED MASTER CYLINDER
    1. Bleed the master cylinder (see BLEEDING ).

    SST 09023-00101

  5. BLEED BRAKE LINE
    1. Bleed the brake line (see BLEEDING ).
  6. INSPECT FOR BRAKE FLUID LEAK
