Front Brake Pad, Brake Caliper & Brake Rotor: Components

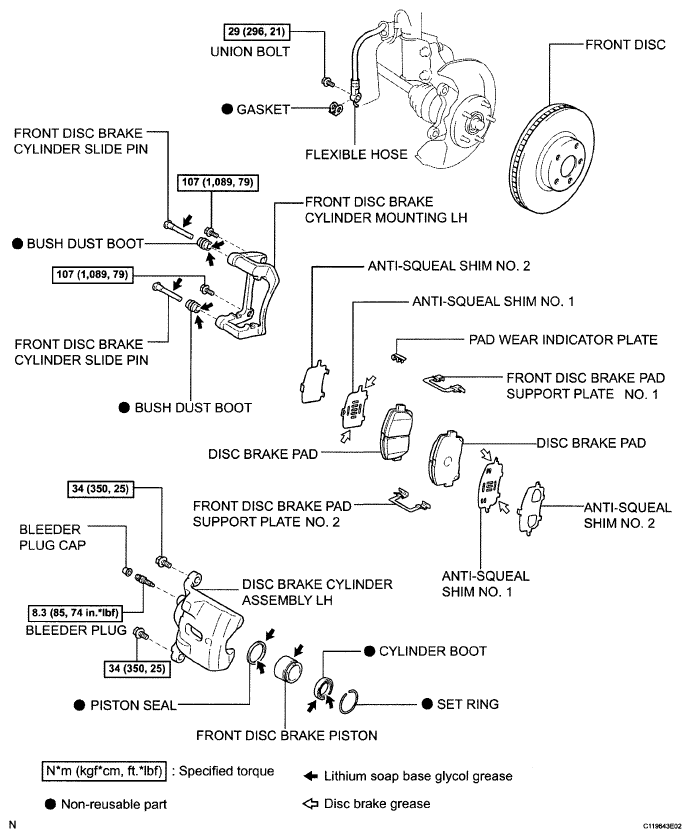

Fig 1: Front Brake Replacement Components With Torque Specifications

G05195059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
