Brake Master Cylinder: Components

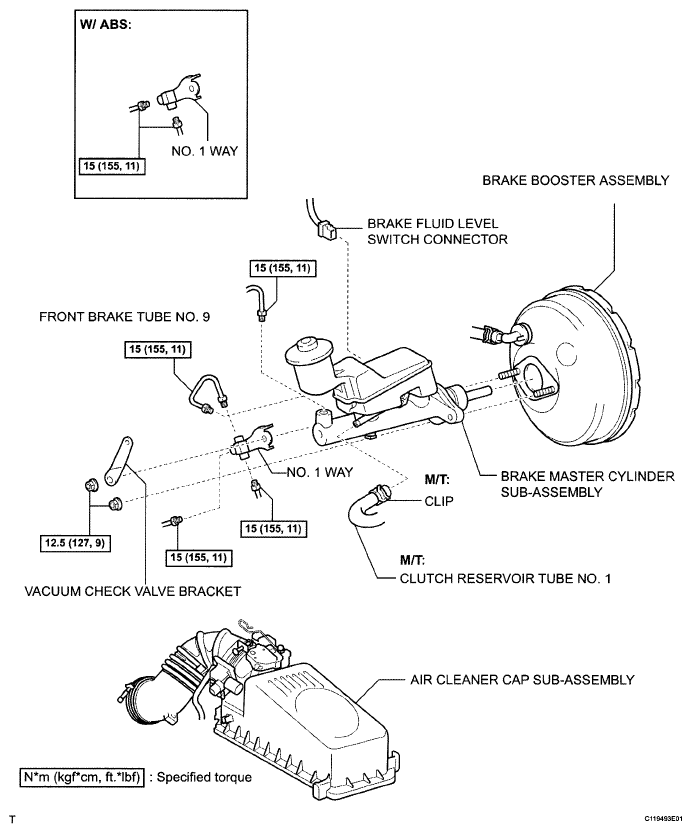

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications (1 Of 2)
G05195030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

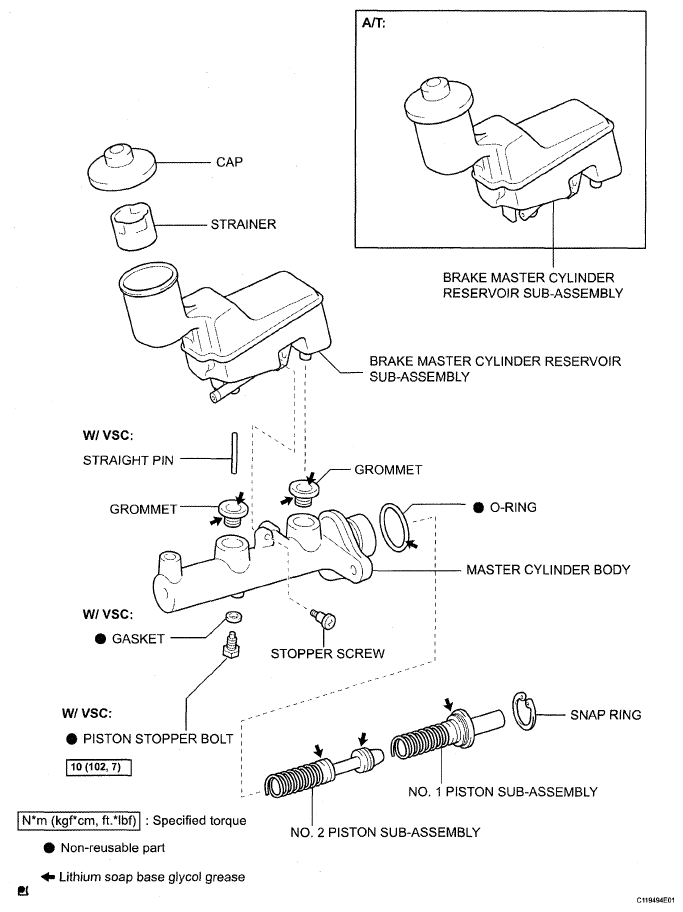

Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 2)
G05195031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
