Brake Booster: Components

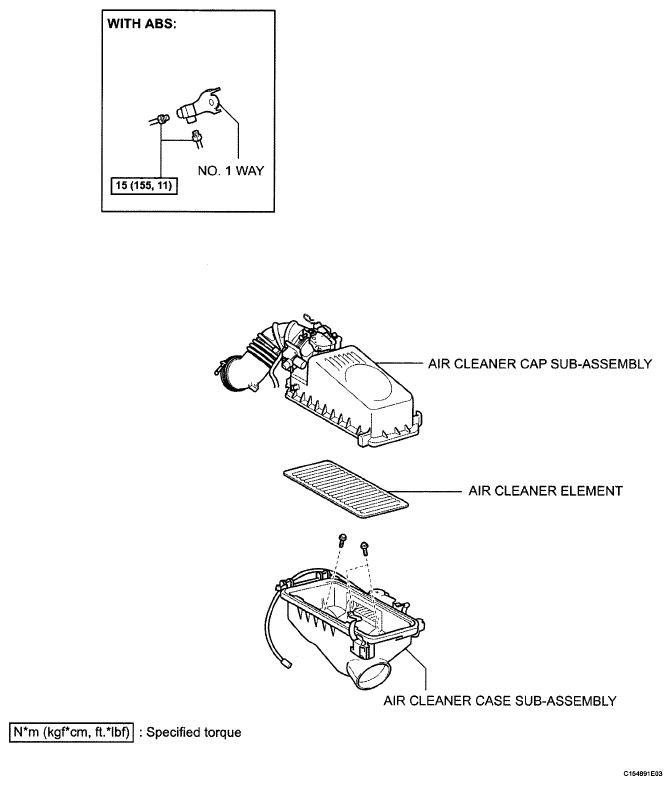

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 2)
G05195048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

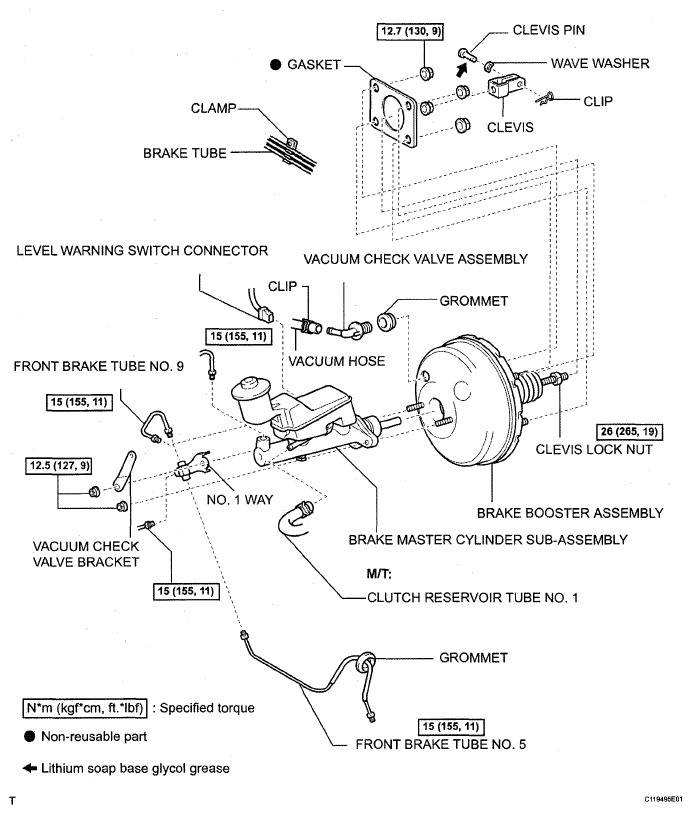

Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 2)
G05195049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
