Warning Buzzer does not Sound: Wiring Diagram

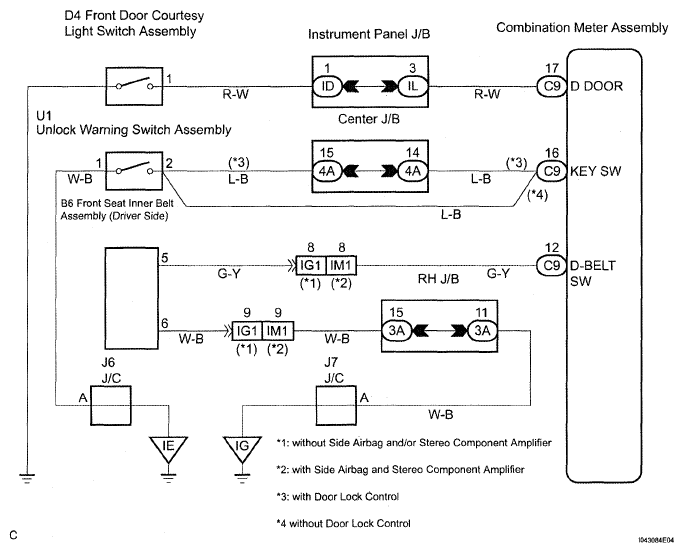

Fig 1: Warning Buzzer Does Not Sound - Wiring Diagram

G05196096

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
