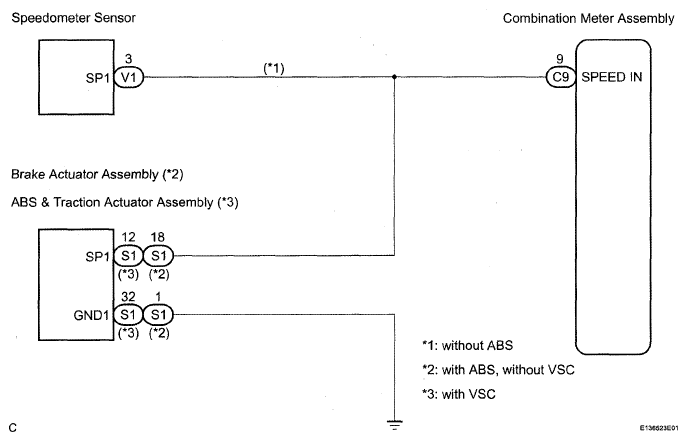

Home >> Toyota >> 2007 >> Corolla CE, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter >> Meter / Gauge System >> Speedometer Malfunction >> Wiring Diagram
