Parts Location

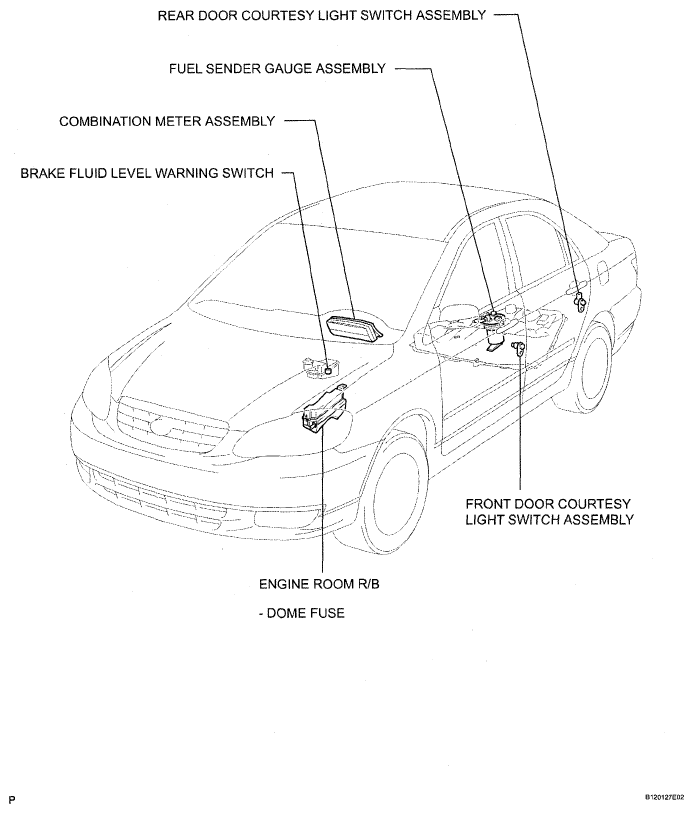

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 2)
G05196059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

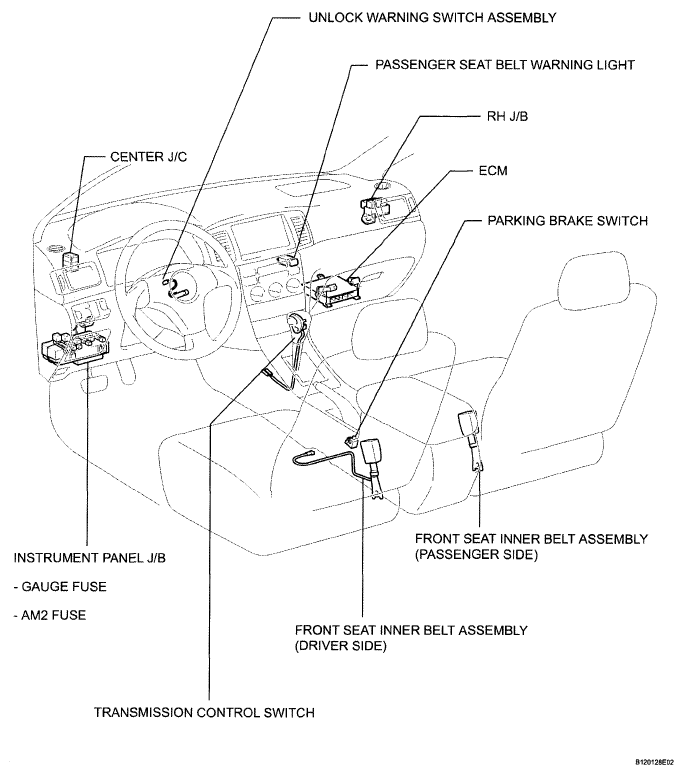

Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 2)
G05196060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
