Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

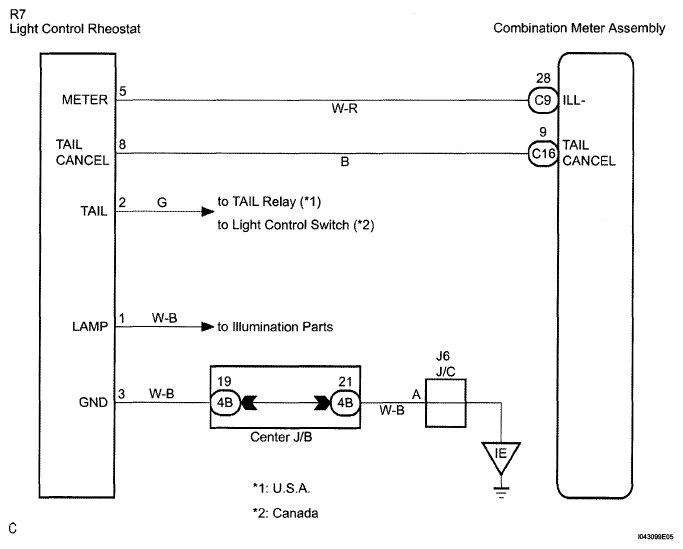

Fig 1: Operating Light Control Rheostat Does Not Change Light Brightness - Wiring Diagram
G05196116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
