Driver Side Seat Belt Warning Light does not Operate: Wiring Diagram

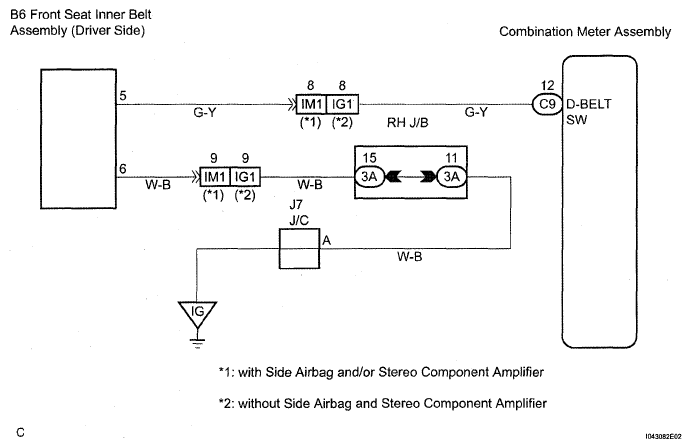

Fig 1: Driver Side Seat Belt Warning Light Does Not Operate - Wiring Diagram

G05196103

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
