Brake Pedal: Components

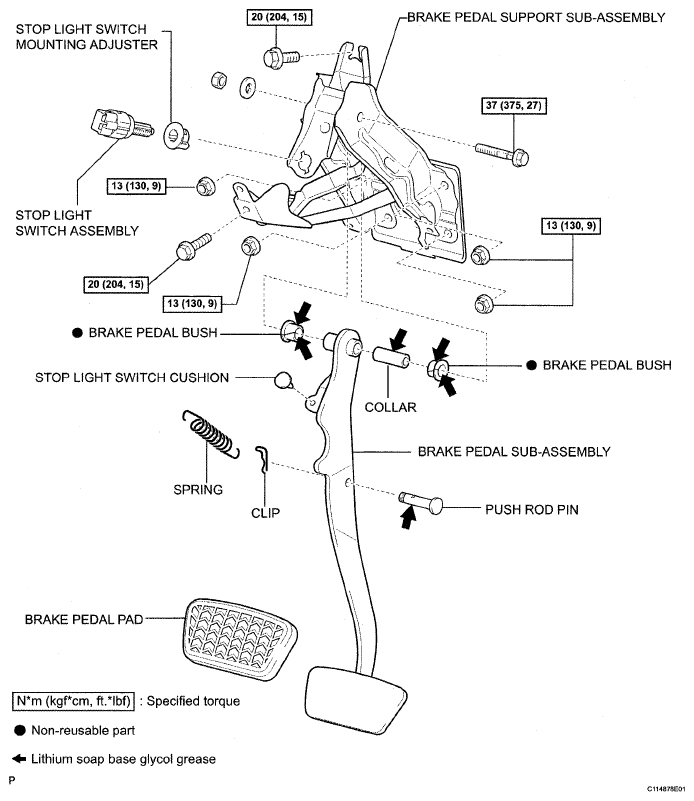

Fig 1: Brake Pedal Replacement Components With Torque Specifications

G05001659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
