Brake Booster: Components

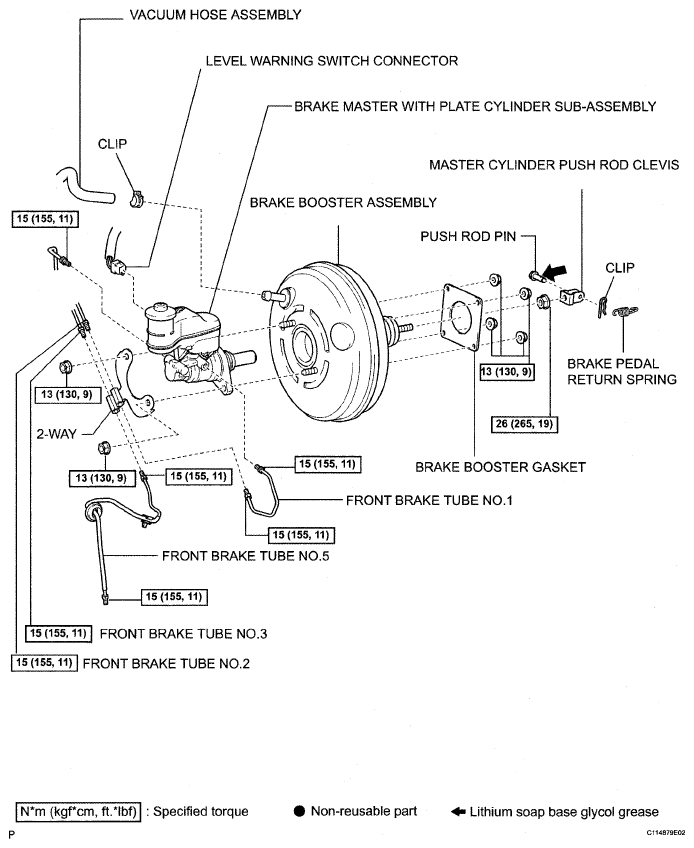

Fig 1: Brake Booster Replacement Components With Torque Specifications

G05001680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
