Rear Seat Assembly: Disassembly

  1. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY LH
    1. Remove the 2 screws and the reclining release handle sub-assembly LH.
  2. REMOVE RECLINING RELEASE HANDLE SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and LH side.

    Fig 1: Identifying Reclining Release Handle Sub-Assembly RH With Screws
    G05006797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. Remove the 47 hog rings.

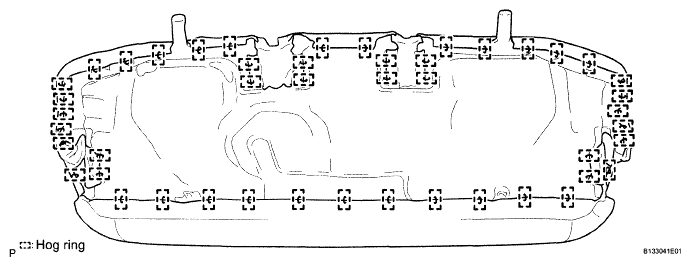

      Fig 2: Identifying Hog Rings
      G05006798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 18 hog rings and the bench type rear seat cushion cover.
    Fig 3: Identifying Rear Seat Cushion Cover Hog Rings
    G05006799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BRACKET
    1. Remove the 3 bolts, E-ring and the rear seat center armrest bracket LH.
    Fig 4: Identifying Rear Seat Center Armrest Bracket LH With Bolts
    G05006800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT ARMREST ASSEMBLY CENTER
    1. Remove the rear seat armrest assembly center.
    Fig 5: Identifying Rear Seat Armrest Assembly Center
    G05006801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR SEAT ARMREST HANDLE
    1. Open the rear seat center armrest door sub-assembly as shown in the illustration.
    2. Remove the ring and remove the rear seat armrest handle and spring as a unit.
      Fig 6: Removing Rear Seat Armrest Handle
      G05006802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the rear seat armrest handle.
    Fig 7: Removing Rear Seat Armrest Handle
    G05006803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY
    1. Disengage the RH side pin.
    2. Disengage the LH side pin and remove the rear seat center armrest door sub-assembly.
  8. REMOVE REAR SEAT HEADREST SUPPORT
    1. Disengage the 6 claws and remove the 3 rear seat headrest supports (LH side).
    Fig 8: Identifying Rear Seat Center Armrest Door Sub-Assembly
    G05006804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT HEADREST SUPPORT

    HINT:

    Use the same procedures for the RH side and LH side.

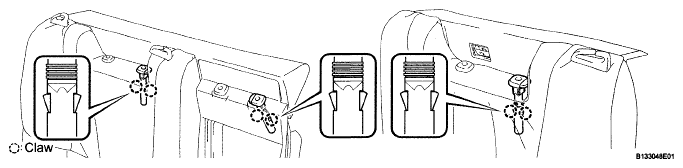

    Fig 9: Identifying Rear Seat Headrest Supports (LH Side)
    G05006805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEAT CENTER ARMREST BOX
    1. Remove the 2 screws.
    2. Disengage the 2 clips and remove the rear seat center armrest box.
    Fig 10: Identifying Rear Seat Center Armrest Box With Screws
    G05006806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 2 screws and the rear seat shoulder belt guide LH.
  12. REMOVE REAR SEAT SHOULDER BELT GUIDE RH

    HINT:

    Use the same procedures for the RH side and LH side.

    Fig 11: Identifying Rear Seat Shoulder Belt Guide LH With Screws
    G05006807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Remove the 2 screws and the rear seat shoulder belt guide center.
    Fig 12: Identifying Rear Seat Shoulder Belt Guide RH With Screws
    G05006808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR SEATBACK COVER LH
    1. Remove the 2 screws.
    2. Disengage the 2 claws and remove the rear seatback cover LH.
    Fig 13: Identifying Rear Seatback Cover LH With Screws
    G05006809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR SEATBACK COVER RH
    1. Remove the 3 screws.
    2. Disengage the 2 claws and remove the rear seatback cover RH.
    Fig 14: Identifying Rear Seatback Cover RH With Screws
    G05006810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE RR SEAT BELT HOOK
    1. Remove the 5 hog rings and the RR seat belt hook.

      HINT:

      Use the same procedures for the RH side and LH side.

    Fig 15: Identifying RR Seat Belt Hook
    G05006811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY LH
    1. Disengage the 2 J-clips.
    2. Remove the 10 hog rings.
    3. Disengage the 2 hooks and remove the rear seatback frame sub-assembly LH.
    Fig 16: Identifying Rear Seatback Frame Sub-Assembly LH
    G05006812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH
    1. Disengage the 2 J-clips.
    2. Remove the 10 hog rings and the rear seatback frame sub-assembly RH.
    Fig 17: Identifying Rear Seatback Frame Sub-Assembly RH
    G05006813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SEPARATE TYPE REAR SEATBACK COVER
    1. Remove the 11 hog rings and the separate type rear seatback cover.
    Fig 18: Identifying Hog Rings
    G05006814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SEPARATE TYPE REAR SEATBACK COVER

    HINT:

    Use the same procedures for the RH side and LH side.

  21. REMOVE UPPER NO.2 LH ARM SUB-ASSEMBLY NO.1 SEAT RECLINING ADJUSTER
    1. Disengage the clamp and remove the 2 nuts and the reclining adjuster arm sub-assembly LH.
  22. REMOVE NO.1 SEAT RECLINING ADJUSTER ARM SUB-ASSEMBLY UPPER NO.2 RH

    HINT:

    Use the same procedures for the RH side and LH side.

    Fig 19: Identifying Reclining Adjuster Arm Sub-Assembly LH
    G05006815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
