Tape Player: Removal

  1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER  (See REMOVAL )
  2. REMOVE TAPE PLAYER ASSEMBLY
    1. Remove the 4 screws.
    2. Pull the tape player assembly toward you and disengage tape player guide.
    3. Disconnect all connectors and remove the tape player assembly.

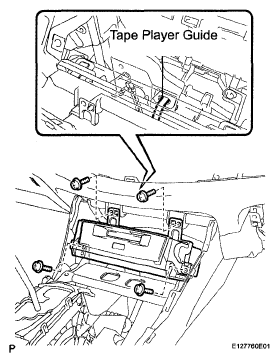

    Fig 1: Removing Tape Player Assembly Screws
    G05006290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
