Parts Location

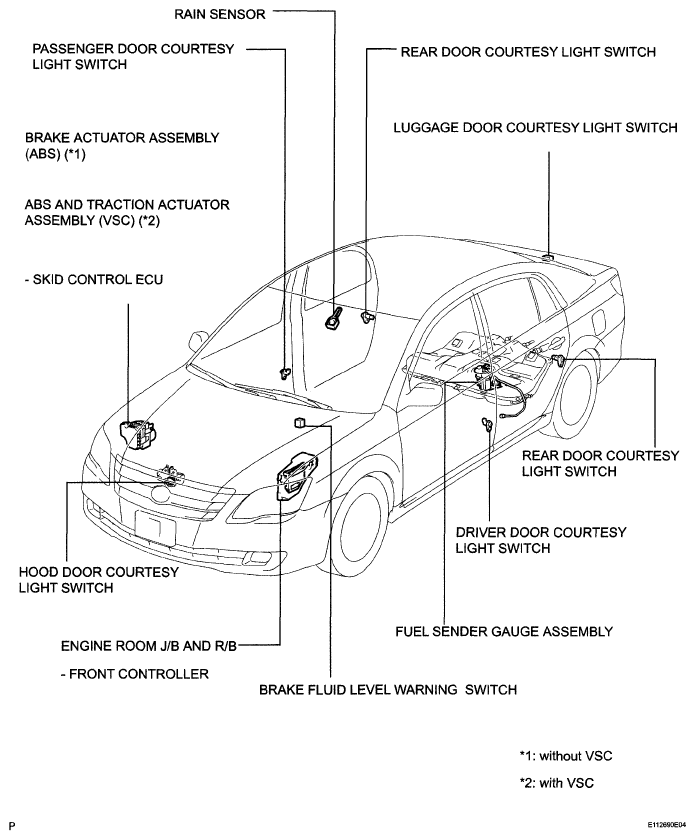

Fig 1: Identifying Meter/Gauge System Components (1 Of 3)
G05006109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

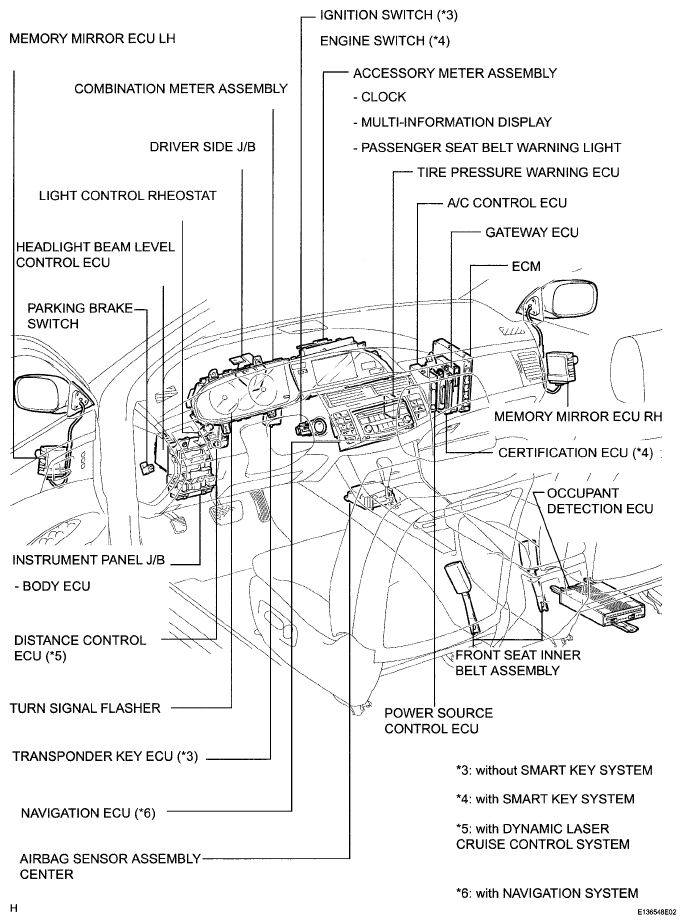

Fig 2: Identifying Meter/Gauge System Components (2 Of 3)
G05006110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Meter/Gauge System Components (3 Of 3)
G05006111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
