Fuel Receiver Gauge Malfunction: Wiring Diagram

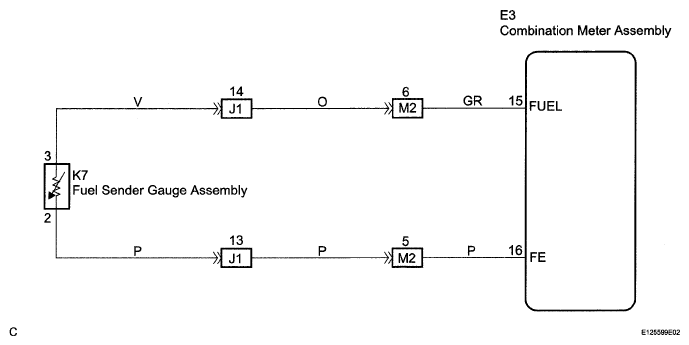

Fig 1: Fuel Receiver Gauge Wiring Diagram

G05006146

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
