Entire Combination Meter does not Operate: Wiring Diagram

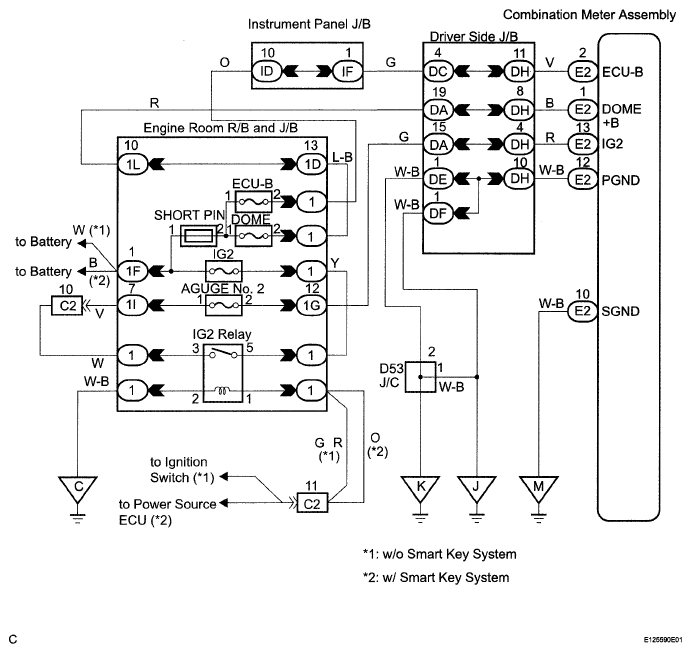

Fig 1: Wiring Diagram For Entire Combination Meter Does Not Operate

G05006135

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
