Clock Display Circuit: Wiring Diagram

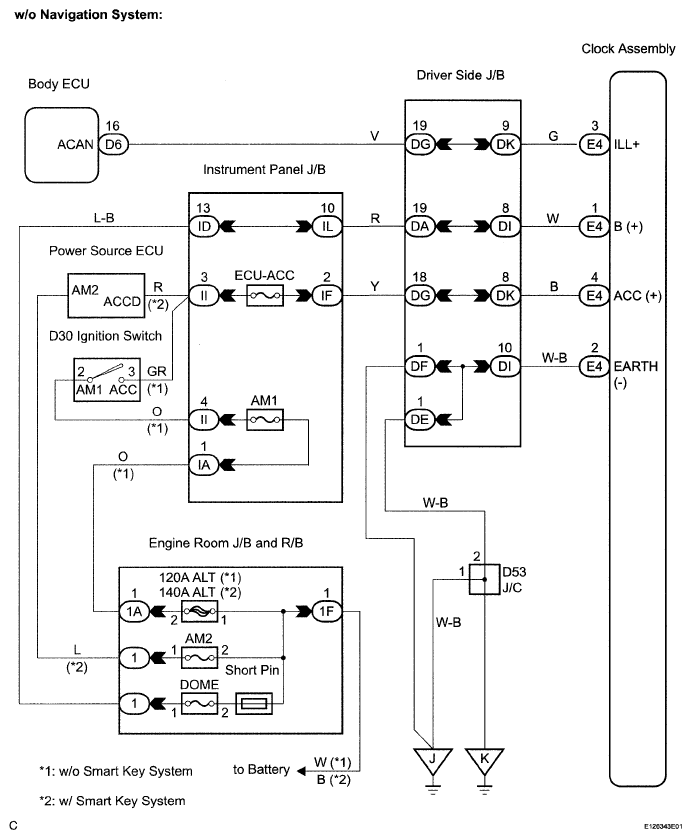

Fig 1: Clock Display Wiring Diagram (W/O Navigation System)
G05006163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

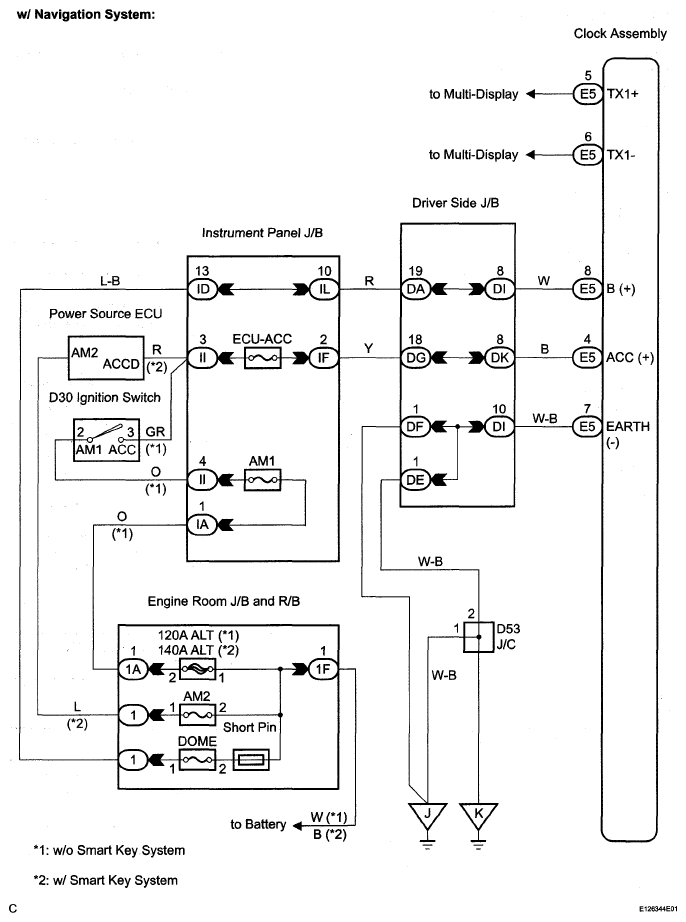

Fig 2: Clock Display Circuit Diagram (w/ Navigation System)
G05006164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
